Time-of-Flight (ToF) Sensors

Unlock pinpoint 3D depth mapping and lightning-fast obstacle detection for your autonomous fleet. Time-of-Flight tech delivers pixel-perfect distances crucial for next-gen AGV navigation and safety.

Core Concepts

Flight Time Measurement

The sensor clocks exactly how long photons take to hit an object and bounce back, crunching distance with the speed of light.

Direct vs. Indirect ToF

Direct ToF (dToF) taps single photon avalanche diodes for long range, while Indirect ToF (iToF) gauges phase shift for sharp short-range mapping.

3D Point Clouds

ToF cameras crank out dense 3D point clouds in real time, helping robots grasp object volume and shape—not just flat 2D distance.

Ambient Light Immunity

Modern ToF sensors pick specific IR wavelengths and modulation tricks to block out sunlight and other lights.

High Frame Rates

Unlike scanning LiDAR, ToF cameras snap the full scene instantly—no motion blur for high-speed nav.

Compact Integration

Solid-state with zero moving parts, ToF modules are super compact and rugged, perfect for squeezing into tight robot frames.

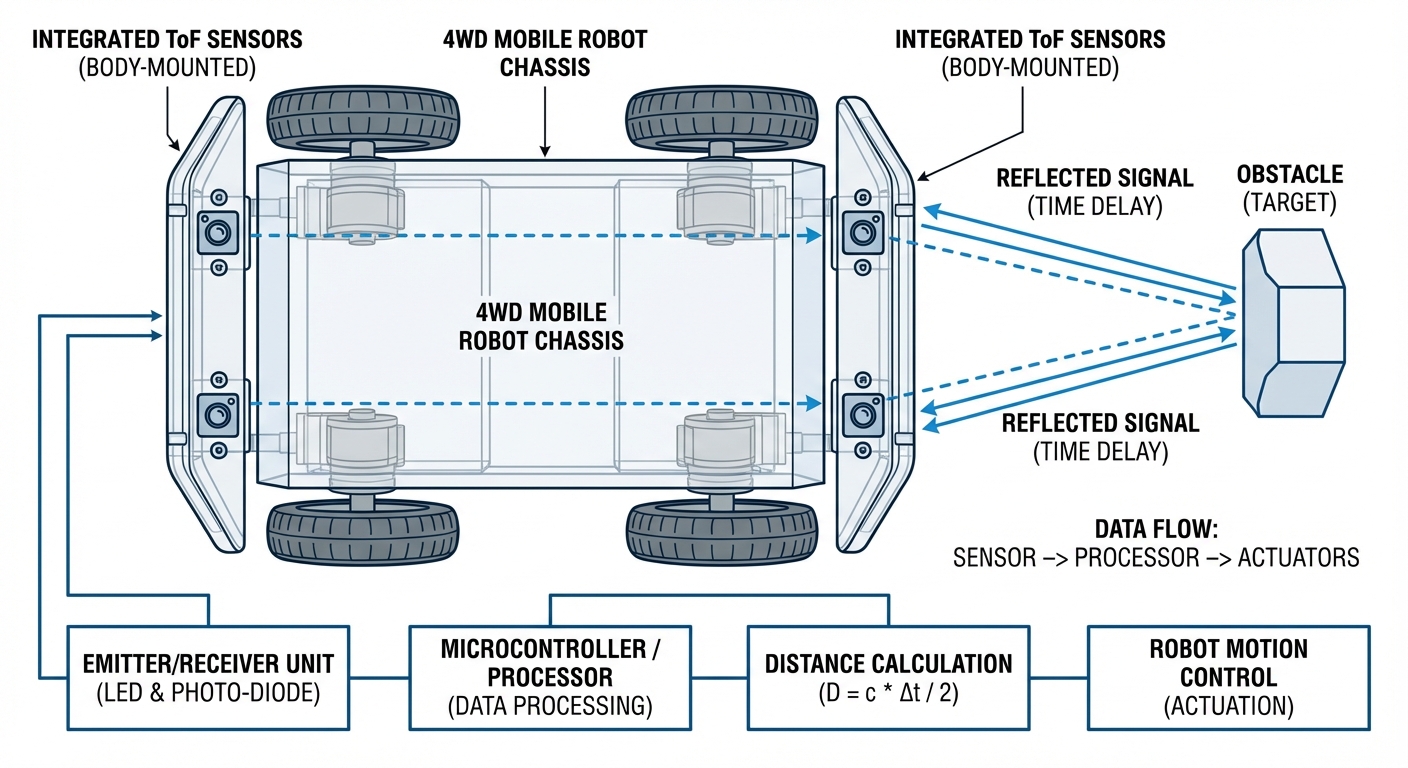

How It Works

Time-of-Flight sensors work like radar but swap radio waves for light. A built-in source—typically a VCSEL (Vertical-Cavity Surface-Emitting Laser) or LED—fires modulated infrared pulses into the surroundings.

When light hits an object and bounces back, each pixel acts as its own stopwatch. It crunches phase shift or direct time-of-flight from emit to return, calculating distance ( ) with , where is the speed of light.

This runs across thousands of pixels at once, spitting out a full depth map (Z-axis) plus intensity (confidence) in one frame—instant spatial smarts for the robot.

Real-World Applications

Warehouse Palletizing

AGVs use ToF to pinpoint pallet pockets and check load alignment. 3D data lets them fine-tune forks perfectly, even on crooked or banged-up pallets.

Human Safety Zones

Mobile robots lean on wide-angle ToF cameras to spot humans crossing their path. Depth info creates smart slowdown zones instead of hard stops.

Bin Picking Arms

Stationary robots with ToF pick out overlapping items in bins. The depth map hands grippers collision-free coordinates.

Anti-Drop Detection

Downward ToF sensors are like cliff radars for cleaners and logistics bots, instantly flagging voids like stairs or dock edges.

Frequently Asked Questions

What is the main difference between ToF and Stereo Vision?

Stereo vision needs dual cameras and heavy CPU crunching to match image features for depth—it bombs on textureless spots like white walls. ToF actively projects light, sips less power, and excels on blank surfaces or total dark.

How does ToF compare to LiDAR for AGVs?

LiDAR nails long range (100m+) and outdoor toughness but costs a fortune and gets mechanically hairy (spinning ones). ToF cameras are solid-state, budget-friendly, and pump dense instant 3D (thousands of points)—ideal for close-range avoidance, interaction, and gestures, though shorter reach (up to 10-20m).

Does sunlight affect ToF sensor performance?

In the past, yeah—sun's IR overload washed them out. But modern AGV ToF rocks narrow filters and unique frequencies to nix ambient light, thriving outdoors or near windows.

What is "Multipath Interference" and how is it handled?

Multipath hits when light ricochets (corners, glossy floors) before returning, skewing distances. Smart ToF algos scrub outliers via confidence and signal shape, but dodge reflective nooks when mounting.

Can ToF sensors detect black or dark objects?

Dark objects gulp IR light, weakening returns. Modern ToF's huge dynamic range spots low-reflectivity stuff (as low as 10%), but black items max out shorter than white ones.

What is the typical range of a ToF sensor for robotics?

Indirect ToF (iToF) shines to 5-10 meters with indoor precision. Direct ToF (dToF) in fresh auto/industrial gear pushes 20-50m+, splitting the difference between cameras and LiDAR.

Does ToF require heavy calibration?

Most industrial ToF modules ship factory-calibrated for lens distortion and temp shifts. Still, extrinsic calibration (sensor pose vs. robot center) is key during setup to sync 3D with your map.

What is the "Motion Blur" issue in ToF?

iToF grabs multiple sub-frames for phase shift—fast robot motion during that creates artifacts. Global shutter sensors cut it down, and dToF's single pulses dodge motion issues entirely.

Can I use ToF with ROS (Robot Operating System)?

You bet. Top ToF makers offer ROS 1 and ROS 2 drivers. Output hits as `sensor_msgs/PointCloud2` or `sensor_msgs/Image` (depth), feeding straight into Nav2 for obstacle mapping.

Is eye safety a concern with ToF emitters?

Industrial ToF are Class 1 Lasers—eye-safe in normal use. VCSEL arrays spread power wide, with hardware failsafes killing the emitter on glitches.

How does power consumption compare to other sensors?

ToF sensors draw 1-5W based on range power needs—far less than spinning LiDAR (10W+), a smidge more than passive stereo, killer for battery AGVs.

Can ToF sensors see through glass or transparent materials?

Generally no. ToF needs reflections—glass or acrylic lets light through (hitting stuff behind) or specular-bounces for junk data. Team up with ultrasonics for transparent detection.
