ROS2 Navigation Stack (Nav2)
Meet Nav2—the ultimate, production-ready navigation framework for autonomous mobile robots. It empowers AGVs to plan paths, tackle dynamic environments, and handle complex behaviors with rock-solid industrial reliability.
_hero.png)
Core Concepts
Behavior Trees
Forget ROS1's state machines: Nav2 uses Behavior Trees to manage intricate robot logic, enabling modular, layered tasks and straightforward recovery from hiccups.
Global Planner
It crunches the best path from start to goal across the full map with algorithms like A* or Dijkstra, giving the robot a solid overall direction before it budges.
Controller Server
This handles local obstacle dodging and path tracking. It outputs velocity commands (Twist messages) to stick to the global path while reacting to pop-up objects.
Layered Costmaps
Nav2 creates a 2D grid view of the world, layering static maps, safety buffers (inflation layers), and real-time sensor data to spot safe traversable areas.
Recovery Servers
Autonomous setups have to bounce back from failures. Nav2 packs behaviors like spinning, reversing, or costmap clears to get robots unstuck—no human needed.
Lifecycle Nodes
Every Nav2 node (planner, controller, map server) is a lifecycle-managed node, delivering predictable startups, shutdowns, and error handling across the board.
How Nav2 Drives Autonomy

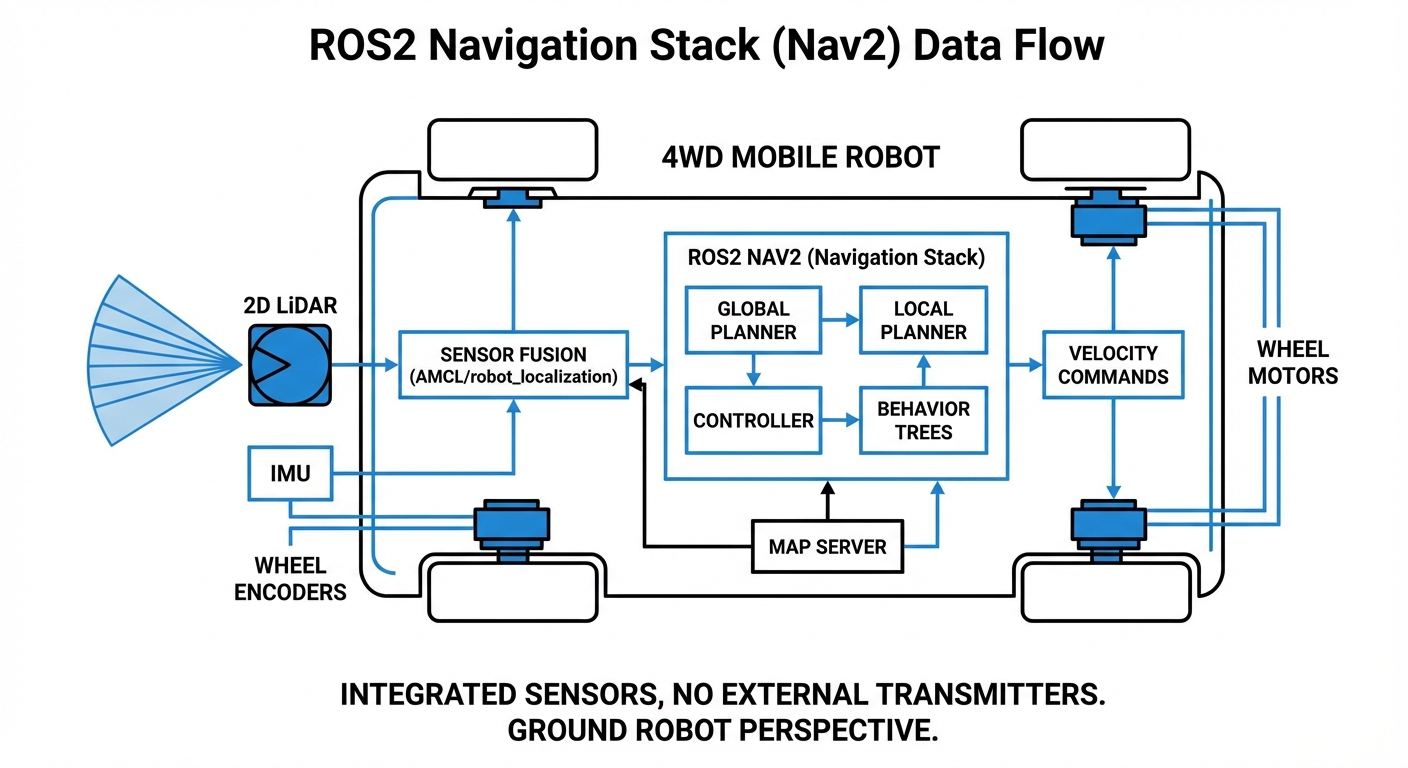

Nav2's architecture screams modularity and scalability. At its core, it grabs a goal pose, blends live sensor data (LiDAR, depth cameras) with odometry, and charts the safest route.
The loads the static environment, while the node pinpoints the robot's position in that map. Meanwhile, the plots the long-haul path, handing it off to the .
The Controller (typically DWA or MPPI) turns that path into instant velocity commands for the motors, tweaking constantly for fresh obstacles in the costmaps. This high-speed feedback loop ensures buttery-smooth, collision-free moves.
_diagram.png)
Real-World Applications
Intralogistics & Warehousing
Nav2 drives AMR fleets (Autonomous Mobile Robots) shuttling pallets and bins. 'Keepout Zones' keep them locked to safety lanes while they nimbly avoid forklifts and workers.
Hospital Delivery
In delicate healthcare spots, Nav2's pinpoint localization lets tug robots deliver linens and meds. Low-noise planners keep hallways whisper-quiet.
Agricultural Robotics
Team Nav2 with GPS for field robots zipping down crop rows. Configure it with the "Smac Planner" for hybrid A* magic on rough terrain.
Security & Inspection
Patrol robots tap Nav2's waypoint follower for inspection loops, auto-docking to recharge when batteries dip.
Frequently Asked Questions
What’s the biggest difference between ROS1 Navigation and ROS2 Nav2?
Nav2 is a ground-up rewrite, not a mere port. It brings Behavior Trees for flexible logic, Lifecycle Nodes for reliable states (active/inactive), and a super-modular plugin system that makes swapping planners and controllers a breeze compared to ROS1.
Does Nav2 support non-circular (non-holonomic) robots like Ackermann steering?
Yep, Nav2 handles differential drive, omnidirectional, and Ackermann (car-like) kinematics. The Smac Planner and Regulated Pure Pursuit Controller are tailored to ace car-like constraints.
What hardware is required to run Nav2 effectively?
Nav2 can run on a Raspberry Pi 4 for simple edu-bots, but industrial gigs need an x86 mini-PC (like Intel NUC) or NVIDIA Jetson. You'll also want solid odometry (wheel encoders/IMU) and sensors like 2D LiDAR or depth cameras.
How does Nav2 handle dynamic obstacles like people?
Nav2's local costmap refreshes live from sensors. The local controller (e.g., DWA or MPPI) recomputes trajectories on the fly to sidestep new obstacles missing from the static map.
Can I use Nav2 without a pre-existing map (SLAM)?
Yes, Nav2 pairs seamlessly with SLAM (Simultaneous Localization and Mapping) like SLAM Toolbox, letting robots map unknown spaces, localize, and navigate all at once.
What is the role of Behavior Trees in Nav2?
Behavior Trees swap out rigid old state machines. Build complex logic visually in XML—like "Follow the path; blocked? Wait 5 seconds. Still? Back up. Fail? Call for help."
How tough is tuning Nav2 for a custom robot chassis?
Moderate effort, really. The biggies are nailing the robot's footprint (shape) and tweaking velocity/acceleration limits in the controller. Botch it, and you'll see oscillations or jerky jolts.
Can Nav2 handle "Keepout Zones" or restricted areas?
Yes, Nav2 has "Keepout Filters." Sketch zones on a dedicated map layer, and the global planner treats them as walls—zero paths through restricted areas.
Does Nav2 support GPS navigation for outdoor robots?
Yes, Nav2 rocks GPS nav via and fusing GPS into localization (with ). Ideal for waypoint missions in vast outdoor zones.
Is Nav2 suitable for multi-robot fleets?
Nav2 runs solo on robots but meshes perfectly with Fleet Management Systems (FMS) like Open-RMF. Open-RMF orchestrates multi-Nav2 traffic to dodge deadlocks and share resources like elevators.
