ROS2 DDS (Data Distribution Service)
The comms powerhouse fueling today's AGV fleets. DDS swaps old-school central bosses for a decentralized, real-time data highway built for industrial automation and robot swarms.
_hero.png)
Core Concepts
Decentralization
No ROS1-style master here. Every robot and sensor is its own node—no single failure point crippling your fleet.
Real-Time QoS
QoS policies let you dial comms for rock-solid reliability (TCP-ish) or blazing speed (UDP-style), matching your nav vibes.
Discovery
Nodes sniff each other out via multicast. Drop a new AGV on the floor? It joins the fleet party instantly.
Security (DDS-Security)
Built-in auth, access controls, and encryption keep your robot data locked from snoopers.
Interoperability
DDS is an OMG standard, so gear from any vendor or middleware plays nice together.
Data-Centricity
The network focuses on the data, not the nodes themselves. Components subscribe to topics like "LidarScan" without needing to know which sensor produced it.

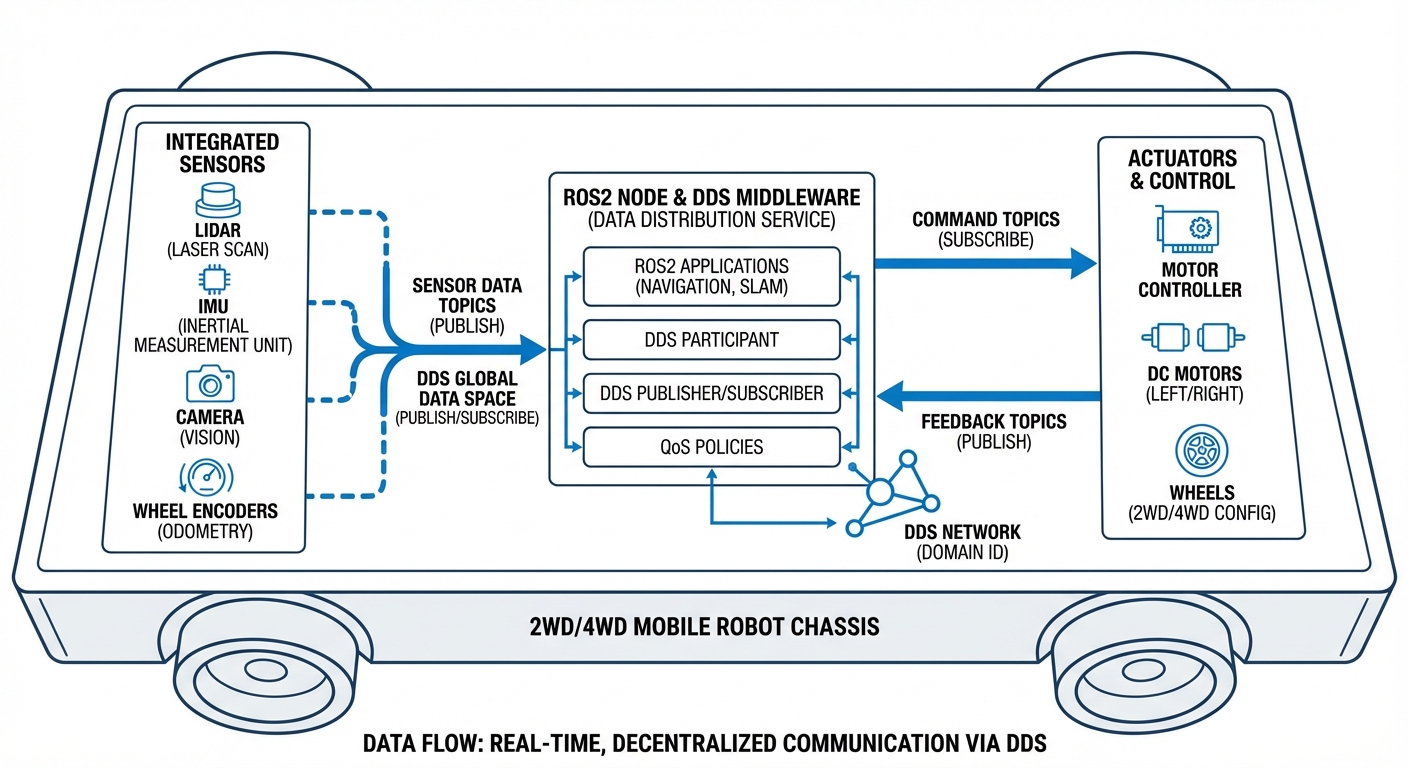

How ROS2 DDS Works
At the core of ROS2 sits the abstract middleware interface (rmw). This layer lets ROS2 layer on top of different DDS implementations—like eProsima Fast DDS, Eclipse Cyclone DDS, or RTI Connext—without you changing a line of your app code.
In a typical AGV setup, the DDS layer manages all the tricky message serialization. When your navigation stack publishes a velocity command, DDS guarantees it hits the motor controllers on time, leveraging UDP for that speedy efficiency.
Key point: for processes on the same onboard computer, many DDS implementations use "Shared Memory" (Zero-Copy). This skips the network stack altogether, letting you process huge data streams—like raw 4K camera feeds—with almost no latency and tiny CPU usage.
_diagram.png)
Real-World Applications
High-Density Warehousing
With hundreds of AGVs around, DDS traffic isolation prioritizes fleet management commands over diagnostic logs, dodging network jams entirely.
Outdoor Agriculture AMRs
DDS "Best Effort" QoS lets ag robots keep chugging along on flaky, long-range Wi-Fi where some packet drops are just part of the deal.
Swarm Robotics
DDS's decentralized nature means a robot swarm can spontaneously form a mesh network, sharing maps and coordinating without any central server calling the shots.
Hospital Logistics
DDS Security plugins are crucial here—they lock down robots carrying sensitive medical supplies so no unauthorized devices can hijack or snoop on them.
Frequently Asked Questions
What’s the main advantage of DDS over ROS1's TCPROS?
The biggest win is ditching the single point of failure (the ROS Master). Plus, DDS defaults to UDP for speed and multicast support, unlike connection-hungry TCPROS that struggles with the spotty links common in mobile robotics.
Which DDS implementation works best for AGVs?
It depends on your hardware. Eclipse Cyclone DDS gets the nod for low CPU use and easy out-of-the-box setup. eProsima Fast DDS offers deep config options for complex networks. Both are stellar for modern AGVs.
Why can't my robots see each other on the Wi-Fi?
It's usually a multicast hiccup. DDS leans on UDP multicast for discovery, but many industrial Wi-Fi routers block it to save bandwidth. Enable IGMP snooping on your router or set up a Discovery Server.
What is a ROS2 Discovery Server?
A Discovery Server is like a central phone book for spots without multicast—like the internet or locked-down Wi-Fi. Nodes ping it to find peers instead of broadcasting everywhere.
How does QoS "Reliability" impact latency?
Set QoS to "Reliable," and messages get delivered for sure—via ACKs and retransmits. It bumps up traffic and latency though, compared to "Best Effort"'s fire-and-forget approach.
Can I mix different DDS vendors in one fleet?
Yes, they all follow the OMG DDS standard, so they interoperate perfectly on the wire. Mixing vendors might cause minor quirks in discovery or QoS, though—best to standardize on one per fleet.
What is "Zero-Copy" transport?
Zero-Copy lets nodes on the same computer swap messages by sharing pointers to memory locations, skipping data copies. Vital for high-bandwidth beasts like LiDARs and cameras to avoid CPU overload.
How do I secure my ROS2 DDS traffic?
Try SROS2 (Secure ROS2), which taps the DDS-Security spec. Generate certs and keys per node for encryption, authentication, and fine-grained access controls.
Does DDS introduce significant CPU overhead?
DDS weighs more than raw TCP sockets thanks to serialization and discovery. But on modern embedded gear like Jetson or Raspberry Pi 4, the overhead's negligible for AGV tasks—especially tuned right.
What is the ROS_DOMAIN_ID?
The `ROS_DOMAIN_ID` environment variable (integer 0-101) silos ROS2 networks. Robots on ID 0 can't chat with ID 1s—perfect for multiple sims or keeping prod fleets apart on shared networks.
How do I debug DDS connection issues?
Start with `ros2 doctor` for quick health checks. Dive deeper with Wireshark (RTPS dissectors rock), or vendor tools like Fast DDS Monitor to visualize discovery graphs and traffic flows.
