Rapidly-exploring Random Trees (RRT)
Uncover the secret sauce of autonomous navigation. RRT is a clever path-planning algorithm that helps AGVs and mobile robots swiftly explore vast, high-dimensional spaces to carve out collision-free paths in messy, unstructured areas.
_hero.png)
Core Concepts
Random Sampling
It grabs random spots (states) inside the map limits, making sure the robot scouts the full space instead of looping in dead ends.
Tree Expansion
RRT builds a 'tree' of paths from the start. Step by step, it links the closest existing node to a fresh random point, quickly claiming open areas.
Collision Checking
Before tacking on a new branch, it double-checks the segment dodges obstacles, keeping the AGV safe.
Goal Biasing
To wrap things up faster, it's often tweaked to sample near the goal more often, nudging the tree toward success while still checking options.
Probabilistic Completeness
It's mathematically proven: if a path exists, RRT will find it eventually as samples pile up.
Constraints Handling
Smarter versions of RRT honor the AGV's real-world limits, like turning radius (non-holonomic constraints), so paths are truly feasible.

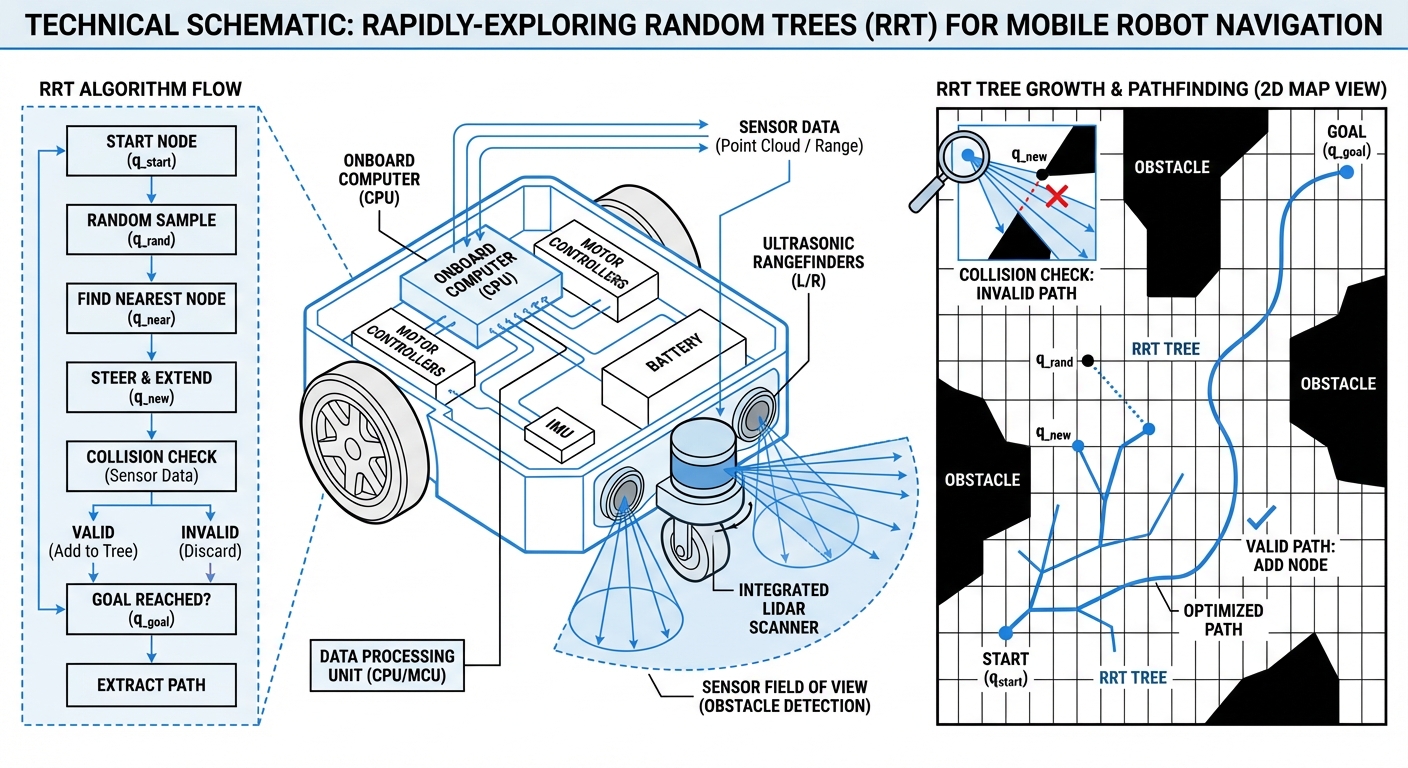

How It Works: The Growth Phase
Unlike grid-huggers like A* that probe every neighbor cell, RRT crafts a graph right in the free space. It kicks off at the robot's spot and sprouts outward like lightning bolts.
The system picks a random point on the warehouse map, finds the nearest tree node, and stretches a branch toward it by a set step.
No crash into shelves or walls? Boom—new node added. This loops thousands of times a second until a branch hits the 'Goal Region,' linking Start to Finish.
Path found? Smoothing polishes those rough edges into sleek, AGV-friendly curves.
_diagram.png)
Real-World Applications
Dynamic Warehousing
In shifting warehouses where pallets shuffle and forklifts dart, RRT lets AGVs replan paths instantly, dodging surprises without stopping the show.
Automated Parking Systems
RRT nails tricky vehicle steering (non-holonomic constraints), perfect for squeezing cars into tight automated garage spots.
Robotic Manipulators
For AGVs with arms (mobile manipulators), RRT juggles high-dimensional planning, syncing 6-7 joints to grab items sans rack crashes.
Rough Terrain Logistics
In bumpy outdoor yards or construction sites sans neat grids, RRT's continuous sampling shines on uneven ground.
Frequently Asked Questions
What is the main difference between RRT and A* (A-Star)?
A* shines on grids for finding the perfect path, but it really struggles in high-dimensional spaces or anything that's not a neat grid. RRT, on the other hand, is a sampling-based approach that thrives in high-dimensional continuous spaces and nails complex vehicle movements—though that first path it spits out is rarely the shortest.
Does RRT always find the shortest path?
No, standard RRT finds path, but not necessarily the shortest; it's often jagged and sub-optimal. For the shortest path, turn to , which gets asymptotically closer to optimal as you give it more time.
What is RRT* (RRT-Star)?
RRT* is the upgraded version of the standard algorithm. When it adds a new node, it scans nearby ones to see if 'rewiring' them could shorten the overall path. That's what delivers those straight, efficient paths ideal for industrial AGVs.
How does RRT handle AGVs that can't move sideways (non-holonomic)?
RRT is fantastic for non-holonomic robots like regular forklifts or Ackermann-steering vehicles. As it grows the tree, it mimics the vehicle's real steering limits, so the path always respects that minimum turning radius.
Is RRT suitable for dynamic obstacle avoidance?
Standard RRT is a global planner—it maps out the full route upfront. But for dynamic obstacles like people wandering around, it's usually teamed up with a local planner (think TEB or DWA) or run in a loop (RRT-X) to quickly replan around fresh blockages.
Why do RRT paths look "jagged" or "jittery"?
Since it relies on random sampling, the tree's branches zigzag toward the goal. In real production, we smooth that raw path with a post-processor (often B-splines) to give AGVs those buttery curves they need.
How computationally expensive is RRT?
RRT is super quick at grabbing an initial solution, even in tricky maps. Its speed hinges on the collision-checking function—using smart structures like Octomaps or Costmaps keeps it humming in real-time.
What is Goal Biasing?
Pure random sampling might take forever to hit the exit by chance. Goal biasing fixes that: say, 10% of the time, that 'random' point is actually the goal itself, yanking the tree straight toward the finish line.
Can RRT work in 3D space?
Absolutely, that's one of RRT's superpowers. It scales effortlessly to 3D for drones or 6-axis arms, staying efficient while grid-based methods explode in complexity with extra dimensions.
What are "Narrow Passages" in the context of RRT?
Narrow spots like doorways are tough because the odds of randomly sampling right inside are tiny. That's where advanced tweaks like 'Bridge Test RRT' come in to zero in on those tricky areas.
Does RRT require a map of the environment?
Yep, RRT needs a 'Configuration Space' (C-Space) map—usually from SLAM occupancy grids or CAD layouts—to spot obstacles during collision checks.
What is the "Step Size" parameter?
The step size controls how far the tree extends per sample. Too big, and it leaps over obstacles; too small, and it's sluggish. Nailing this tune is key for your AGV's speed and surroundings.
