Monte Carlo Localization (AMCL)
Navigate your autonomous fleet with pinpoint accuracy. AMCL is the go-to industry-standard probabilistic algorithm that lets mobile robots nail their exact position in a known map, staying reliable even in lively environments.
_hero.png)
Core Concepts
The Particle Filter
AMCL doesn't pin the robot's position to a single spot—instead, it uses a cloud of random 'particles.' Each one stands for a possible robot pose (x, y, theta).
Probabilistic Weighting
When the robot scans its surroundings (usually with LiDAR), AMCL matches that scan to the known map. Particles that line up well get a bigger 'weight' or probability boost.
Resampling
As the robot rolls along, the algorithm ditches low-probability particles and duplicates the high performers, pulling the whole cloud toward the robot's true spot.
Odometry Integration
AMCL uses wheel encoders and IMU data to nudge the particles along. Odometry drifts over time, so the particle filter sprinkles in some 'noise' to cover slippage.
Adaptive Sample Size
Today's AMCL versions (like KLD-sampling) smartly tweak particle numbers—lots when unsure, fewer when locked in—to keep CPU happy.
Global Localization
Though it's mainly for tracking, AMCL tackles the 'kidnapped robot problem' by sprinkling particles everywhere on the map to rediscover its spot if totally lost.

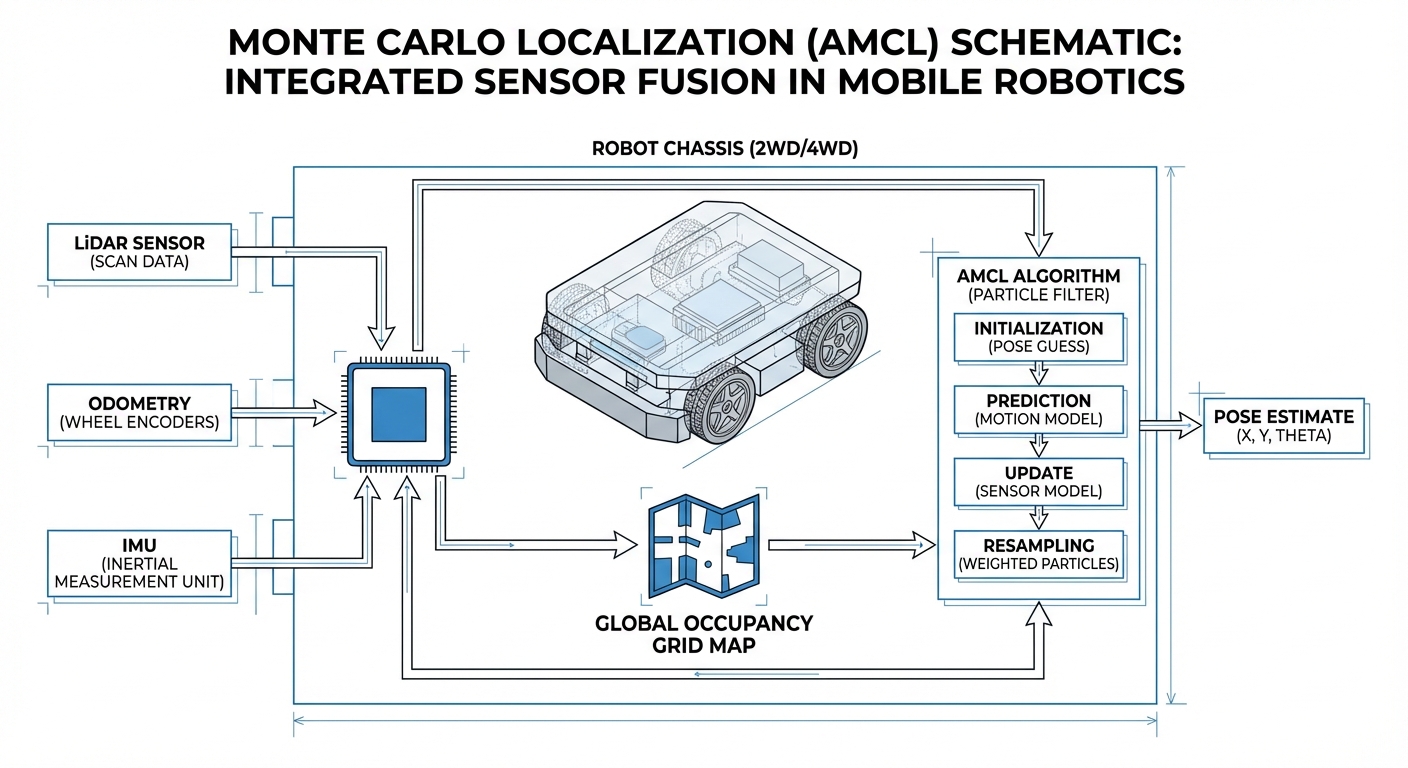

How It Works: The Iterative Cycle
The magic of Monte Carlo Localization is its endless 'Prediction-Correction' loop. Unlike rigid deterministic methods, it rolls with real-world messiness.
1. Motion Update (Prediction):
2. Sensor Update (Correction): each individual particle
3. Resampling:
_diagram.png)
Real-World Applications
Warehouse Logistics
AMRs (Autonomous Mobile Robots) lean on AMCL to zip through long corridors and storage aisles—no magnetic tape or QR codes needed. It masters the 'canyon effect' from tall shelving like a champ.
Hospital Delivery
Service robots dropping off linens or meds use AMCL to weave through tricky hospital layouts. Its probabilistic smarts handle spots where beds or carts temporarily block walls.
Manufacturing Floors
AGVs hauling raw materials to assembly lines count on AMCL for centimeter-precise docking. By zeroing in on fixed machinery, they nail seamless handoffs.
Commercial Cleaning
Autonomous scrubbers in airports and malls rely on AMCL to roam vast open areas. It's tough enough to stay on track even when crowds block chunks of the sensor view.
Frequently Asked Questions
What is the difference between AMCL and SLAM?
SLAM (Simultaneous Localization and Mapping) builds maps on the fly in unknown spots. AMCL is purely for localization—it needs a ready-made static map. Usually, SLAM once for mapping, then AMCL for everyday nav.
Does AMCL work in dynamic environments with moving people?
Yes, up to a point. AMCL sees moving stuff (people, forklifts) as sensor noise. As long as most of the LiDAR scan hits static map features like walls or pillars, it keeps localized. Super-crowded spots with lots of blocked features can throw it off, though.
What sensors are required for AMCL?
The basics call for a 2D LiDAR (laser scan) and odometry (wheel encoders or IMU). LiDAR feeds the map-matching data, odometry guesses motion between scans.
What is the "Kidnapped Robot Problem"?
This hits when someone picks up the robot and plops it somewhere new without odometry catching it. Regular trackers flop here. AMCL bounces back with 'global localization,' scattering particles map-wide to reconverge.
How computationally expensive is AMCL?
It hinges mostly on particle count. 500 particles are a breeze for modern CPUs (even Raspberry Pi). But 5,000+ for super precision can hog resources—adaptive sizing keeps it in check.
Why does my robot jump or teleport on the map?
That usually means the particle cloud split into clusters, and the 'average' pose flips between them. Think symmetrical spots like long hallways that look identical end-to-end. Boost sensor range or add standout map features to fix it.
Can AMCL handle glass walls or mirrors?
No, standard LiDAR sails through glass or bounces off mirrors, messing up distances. It sees stuff behind glass or ghosts in mirrors. Best to blank out glass on the map or mix in ultrasonic/vision sensors.
How accurate is AMCL?
With a dialed-in setup and sharp LiDAR, AMCL hits 2-5 cm accuracy and 1-2 degrees rotation. Plenty for most docking and nav jobs.
Does AMCL work in 3D?
Classic AMCL is 2D (x, y, yaw). 3D Monte Carlo (full 6DOF) exists but guzzles compute—better for drones or submersibles than warehouse AGVs.
What happens if the map changes (e.g., shelves moved)?
Small tweaks are no sweat; AMCL handles minor map mismatches. But shift big stuff like walls or racks, and it'll lose track as LiDAR clashes with the map. Time to remap.
How important is the initial pose?
Super key. AMCL shines with a decent starting guess. No clue? It runs global localization—spins to scan and gather particles—which takes time and isn't instant.
Is AMCL suitable for outdoor navigation?
It works outdoors, but GPS fusion (like EKFs) often rules open areas. AMCL falters without tall structures for LiDAR to latch onto. Needs clear geometric cues.
