Model Predictive Control (MPC)
MPC is the clever navigation brain that lets AGVs peek into the future, fine-tune paths in real time, and juggle tricky dynamic limits. It evolves reactive robots into proactive, smart operators for silkier, safer runs.
_hero.png)
Core Concepts
Prediction Horizon
The lookahead window—the stretch of future time the controller scans. It lets the robot spot upcoming turns or obstacles and dial back speed ahead of time.
Constraint Handling
Unlike PID, MPC keeps a sharp eye on hardware limits. It guarantees steering angles, accel caps, and motor voltages stay safely in bounds.
Cost Function
A math formula juggling trade-offs. It prioritizes nailing the path against saving energy or keeping things comfy for passengers.
Receding Horizon
The optimization refreshes every timestep. Even a 5-second plan gets a millisecond update with the latest sensor data.
System Model
A math model of the robot's physics (kinematics and dynamics). Killer MPC demands a precise one to forecast how controls shift the state.
State Estimation
MPC needs dead-on current position and velocity. It syncs seamlessly with localization tech (like LiDAR or SLAM) to fire up the prediction cycle.
How It Works

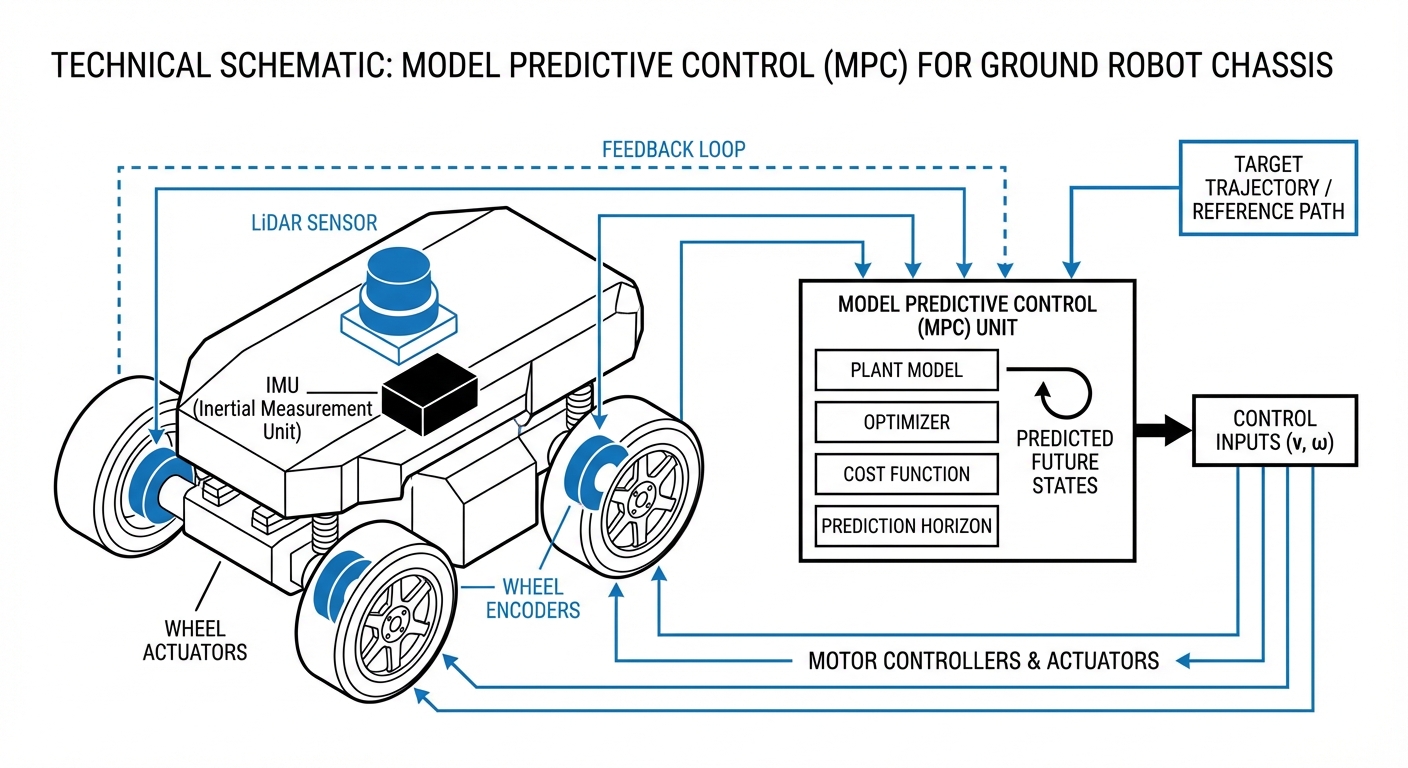

Model Predictive Control plays like a chess grandmaster in motion planning. Forget knee-jerk fixes to current errors ("off the line left, veer right")—MPC rolls out multiple future paths grounded in robot physics.
Every millisecond, the controller tackles a hefty optimization to pick the ideal control sequence (steering, throttle) that slashes "cost" over the horizon, all while honoring rules like "max speed 2m/s."
It only runs the first step of that plan. Then the robot checks its new state, slides the horizon forward, and reruns the math. This nails dynamic shifts and disturbances effortlessly.
_diagram.png)
Real-World Applications
High-Density Warehousing
Narrow aisles call for centimeter-precision maneuvers in AMRs. MPC delivers fluid, nonstop turns that hug safety zones and speed limits, ramping up throughput.
Dynamic Manufacturing Floors
Factories buzz with forklifts and folks darting around. MPC lets AGVs remix trajectories on the fly to sidestep moving hazards without full stops, preserving smooth flow.
Heavy Payload Transport
AGVs hauling tons battle serious inertia. MPC weaves momentum into its physics model to dodge overshoots and deliver gentle braking that cradles the cargo.
Outdoor Logistics & Agriculture
Bumpy or slick terrain messes with wheel grip. Advanced Non-Linear MPC adapts to shifting friction for rock-solid path tracking outdoors.
Frequently Asked Questions
What is the main difference between MPC and PID control?
PID reacts to errors after they hit, leaning on past and present states. MPC looks ahead proactively, modeling the system to predict outcomes and optimize over a future horizon—way better at multivariable constraints.
Why is MPC considered computationally expensive?
MPC crunches complex optimizations (often quadratic or nonlinear programming) at every timestep, 20-50 times a second. That demands beefier onboard processors than PID's simple loops.
What's the "Prediction Horizon" all about, and how do you pick the right one?
The prediction horizon is how far ahead the controller peers into the future—like 2 seconds or 20 steps. A longer one delivers smoother paths but ramps up the computing demands a ton. Tune it around your robot's top speed and stopping distance.
What if the internal model doesn't quite match your real robot?
That's "model mismatch." When the model's off—like bad weight or friction estimates—predictions flop, causing lousy tracking or outright instability. Robust MPC or adaptive versions can patch those gaps in real time.
Can MPC handle dynamic obstacle avoidance?
You bet, and it really shines. Just plug obstacles in as "constraints" in the optimization. The MPC solver crafts a path that sticks to your robot's motion limits while keeping a safe gap from moving hurdles.
What is the difference between Linear and Non-Linear MPC?
Linear MPC treats robot dynamics like a simple linear system—super fast to crunch but not ideal for fancy maneuvers. Nonlinear MPC (NMPC) leverages the full, precise model for top-notch accuracy on speedy or tricky robots, though it demands way more compute power.
Does MPC require specialized hardware?
For everyday AGVs, a modern industrial PC or embedded rig like NVIDIA Jetson or Intel NUC gets the job done. Microcontrollers like Arduino? They're usually too underpowered for serious MPC solvers.
How is MPC implemented in ROS // ROS 2?
In the ROS world, Nav2's stack includes an MPC Controller plugin (MPPI or other MPC variants). You configure cost maps, vehicle constraints, and cost functions right in YAML files.
Does MPC improve energy efficiency?
Absolutely. Toss in "energy usage" or "control effort" to the cost function, and it hunts for buttery-smooth paths with minimal jerk—extending battery life big time for mobile fleets.
What is the hardest part of implementing MPC?
System identification and tuning. Crafting a dead-on physics model for your robot's chassis, then dialing in cost function "weights" (like deviation penalties vs. speed) is usually a tedious trial-and-error slog.
Is MPC suitable for Ackermann steering vehicles?
Yep, MPC's a favorite for Ackermann (car-like) steering since it nails those non-holonomic constraints—no sideways sliding. Traditional controllers often fumble these kinematics.
How does MPC handle sensor latency?
MPC handles delays smartly. By forecasting future states, it bakes in the lag from sensors to actuators, delivering rock-solid control even with minor comms hiccups.
