LoRaWAN
Scale your fleet connectivity huge with LoRaWAN, the Low Power Wide Area Network for the industrial edge. It beams vital AGV telemetry kilometers away—even through thick warehouse clutter—all on tiny power.
Core Concepts
Long Range Coverage
It pushes signals up to 15km in rural spots and deep into tricky indoors, wiping out Wi-Fi dead zones.
Ultra-Low Power
It's optimized for tiny data packets, so battery-powered IoT sensors and robot modules can run for years without needing a recharge.
Deep Indoor Penetration
It taps sub-gigahertz radio waves (CSS modulation) to breeze through concrete walls, metal racks, and even multiple floors.
Star Topology
Devices connect straight to gateways—no meshing involved. This keeps things simple and cuts battery drain from relaying messages.
AES-128 Security
End-to-end encryption keeps telemetry on fleet location and status locked tight, from the edge device right to the app server.
Adaptive Data Rate
The network automatically fine-tunes data rates, airtime, and power use for each end node based on its signal quality.
How It Works: Chirp Spread Spectrum
LoRaWAN builds on LoRa physical layer tech, powered by Chirp Spread Spectrum (CSS) modulation. Unlike basic amplitude or frequency modulation, CSS packs data into "chirps"—sweeping signals that shrug off interference and noise like champs.

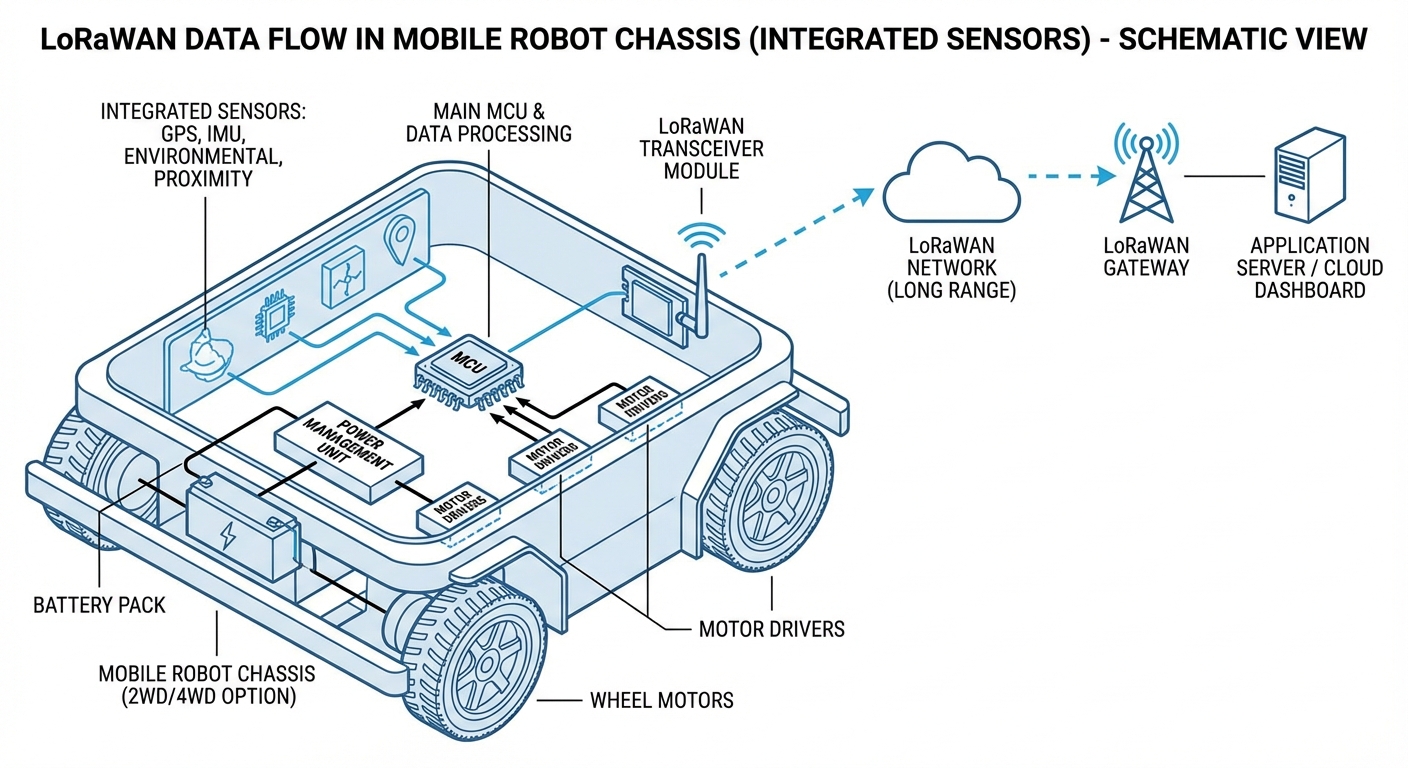

In robotics, the AGV is your "End Node." It blasts out small telemetry packets (battery status, X/Y coords, error codes) on its own schedule. One or more Gateways snag these and relay them transparently to a central Network Server over standard IP (Ethernet or cellular).
The Network Server takes care of duplicates (if multiple gateways hear it), decrypts securely, tweaks rates adaptively, then delivers clean JSON to your Fleet Management System. This setup lets thousands of robots share just a few gateways.
Real-World Applications
Mega-Warehouse Asset Tracking
In massive 500,000+ sq ft facilities where Wi-Fi is spotty or a hassle to maintain, LoRaWAN delivers rock-solid, low-bandwidth location updates for pallet jacks and forklifts.
Outdoor Agriculture Robotics
For autonomous tractors or harvesters in huge fields without cell service, LoRaWAN builds a private network for those essential "heartbeat" status signals.
Predictive Maintenance
Robots with vibration and temp sensors can fire off regular health reports over LoRaWAN, separate from the main control network—so maintenance alerts always get through.
Mining & Underground Operations
With its killer penetration power, LoRaWAN shines for tracking AGVs in mines or tunnels, where 2.4GHz or 5GHz signals just fizzle out.
Frequently Asked Questions
Can LoRaWAN replace Wi-Fi for controlling AGVs?
No, LoRaWAN isn't built for real-time control (teleoperation). Its latency (seconds) and low bandwidth (bytes per second) rule out video streams or instant motor commands. It's perfect for non-critical telemetry, asset tracking, and status checks alongside a speedy local network.
What is the typical range in an industrial warehouse?
Outdoors, range can top 10km, but in industrial indoors, it's usually 2-3km. That's still miles ahead of Wi-Fi—one gateway often covers a whole big logistics center, slicing through metal racks and concrete walls that block higher frequencies.
How does LoRaWAN handle network congestion with many robots?
LoRaWAN gateways juggle multiple channels and spreading factors at once. But duty-cycle rules mean you gotta limit how often each robot transmits. It's made for periodic pings (like every minute), not nonstop streaming.
Is the data transmission secure?
Yes, with two layers of AES-128 encryption: Network Session Keys (to verify the node's legit) and Application Session Keys (to encrypt the payload). Gateways can't peek at the data—only the app server with the keys can decrypt your telemetry.
What is the difference between Public and Private LoRaWAN?
Public networks (like The Things Network or Helium) rely on shared setups where you pay for access or tap community gateways. Private ones mean your own gateways and Network Server (e.g., ChirpStack) on-site, for full control over latency, coverage, and data ownership—ideal for industrial robotics.
Does LoRaWAN interfere with factory Wi-Fi or Bluetooth?
Generally, no. LoRaWAN runs on sub-gigahertz ISM bands (868 MHz in Europe, 915 MHz in US). Wi-Fi and Bluetooth stick to 2.4 GHz and 5 GHz. Totally different frequencies, so they coexist without stepping on each other.
Can I use LoRaWAN for indoor geolocation?
Yes, via TDoA (Time Difference of Arrival). With three or more gateways picking up the signal, the network triangulates position. Accuracy's coarse though (20-100 meters) vs. LiDAR or UWB, so it's great for zone tracking, not pinpoint navigation.
What is the maximum payload size?
Payload size shifts with Spreading Factor (range)—typically 51 to 222 bytes. This pushes efficient encoding; devs send compact binary or hex, skipping wordy JSON for max bang per byte.
What happens if a gateway goes offline?
LoRaWAN networks are tough as nails. With overlapping coverage from multiple gateways, your robot's message just gets caught by the next one in line. No bonding to a specific gateway—it broadcasts to the whole network.
How much power does a LoRaWAN module consume?
Power draw is tiny. Sleep mode sips microamps. Transmits pull 30-40mA for mere milliseconds. For an AGV's big battery, it's nothing; for external sensors, it means 5-10 year battery life.
Is it expensive to implement?
Compared to mesh Wi-Fi needing cables and access points every 50 meters, LoRaWAN is a steal. One industrial gateway runs a few hundred bucks and spans kilometers. Robot end-node modules are cheap commodity gear too.
