Inertial Measurement Units (IMU)
It's like the inner ear of modern robots, delivering key data on force, angular rate, and orientation. IMUs are vital for keeping AGVs stable, doing dead reckoning, and maintaining navigation when GPS or LiDAR get blocked.
_hero.png)
Core Concepts
Accelerometers
Tracks linear acceleration along the X, Y, and Z axes. Super important for catching starts, stops, and collision bumps in robot fleets.
Gyroscopes
Senses angular velocity or how fast it's rotating. This helps the robot figure out its orientation and stay steady during turns.
Magnetometers
Works like a digital compass, sensing Earth's magnetic field to give an absolute heading and fix gyroscope drift.
Degrees of Freedom
Standard IMUs give you 6-DoF (gyro + accel). For top-notch navigation, 9-DoF adds magnetometers for full spatial awareness.
Sensor Fusion
It's the smart process (often with Kalman Filters) that blends data from various sensors to cut down uncertainty and nail the accurate pose.
Dead Reckoning
The knack for figuring out your current spot from a known starting point plus speed estimates—crucial when wheel encoders slip.
How IMUs Drive Autonomy
At the core of every IMU are tiny Micro-Electro-Mechanical Systems (MEMS). These microscopic vibrating bits sense motion and orientation changes. In an AGV, the IMU runs at blazing speeds, sampling data hundreds of times a second to catch even the tiniest movements.
One of the IMU's biggest jobs in mobile robots is fixing . Hit an oil slick or bumpy floor, and wheel encoders might think you're moving when you're not. The IMU notices the chassis isn't accelerating right and tells the navigation system to adjust the position.
Plus, IMUs are key for . Navigating a ramp or bumping an obstacle? The IMU flags the tilt to the safety system, stopping tip-overs and keeping loads steady.

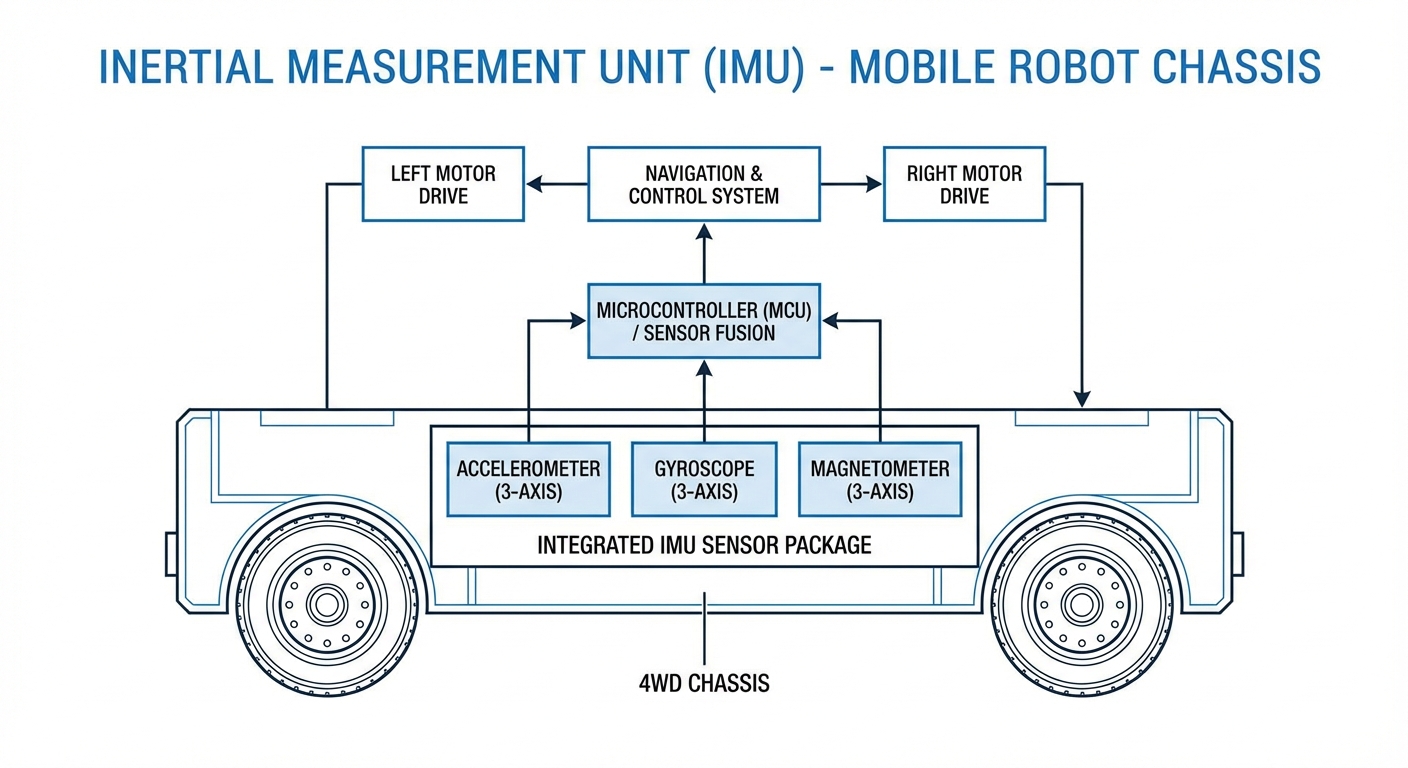

_diagram.png)
Real-World Applications
Warehouse AMR Fleets
Lets Autonomous Mobile Robots zip through tight aisles with pinpoint accuracy, instantly fixing heading glitches when switching floor types.
Outdoor Agriculture Robots
Gives stability info for robots over rough mud or gravel, where wheel encoders flop due to constant slip.
Hospital Delivery Units
Delivers ultra-smooth accel and decel curves to avoid spilling delicate fluids or meds in transit.
Automated Forklifts
Tracks mast vibes and chassis tilt to dynamically balance tall, heavy loads, boosting safety big time.
Frequently Asked Questions
What's the difference between an IMU and an AHRS?
An IMU spits out raw data like acceleration and angular rates. An AHRS (Attitude and Heading Reference System) has a built-in processor running fusion algorithms to hand you ready-to-use orientation (roll, pitch, yaw)—it does the heavy math for you.
Why does IMU data drift over time?
Drift happens because IMUs derive position by double-integrating acceleration. Tiny errors or noise pile up fast over time, causing position creep. That's why they're always teamed with absolute sensors like LiDAR or cameras for corrections.
What is the "Random Walk" in IMU terminology?
Angle Random Walk (ARW) and Velocity Random Walk (VRW) measure how noise builds error over time. Lower values mean a sharper sensor that holds accuracy longer without outside help.
Do I need a 6-DoF or 9-DoF IMU for my indoor AGV?
In most indoor spots, 6-DoF (gyro + accel) does the trick since magnetic junk from racks and motors messes with the magnetometer in 9-DoF. Save 9-DoF for outdoors.
How does an IMU help with LiDAR SLAM?
SLAM can glitch during fast spins or blank hallways. The IMU bridges the gap with high-speed motion estimates between LiDAR scans, straightening laser data and keeping localization on track during wild moves.
What is the role of the Kalman Filter?
The Kalman Filter is the go-to for merging IMU with odometry or GPS. It smartly weighs each input by its error stats to spit out a position way better than any one sensor alone.
How does vibration affect IMU performance?
Motor vibes or bumpy ground can max out the accelerometer, adding tons of noise. Add mechanical dampers and software low-pass filters to keep industrial bots smooth.
What is MEMS technology?
Micro-Electro-Mechanical Systems (MEMS) are tiny chip-based wonders with suspended masses that sense motion. Cheap, low-power, and compact—they're the go-to for commercial mobile robots.
How often does an IMU need calibration?
Factory calibration covers basics, but for magnetometers, do 'hard iron' and 'soft iron' calcs on-site. Recalibrate gyro bias at every boot-up when the robot's still.
Can an IMU replace wheel encoders?
No, they team up perfectly. Encoders nail distance but suck at heading; IMUs rock heading but drift on distance. Fusion of both is navigation gold.
What's a typical update rate for an AGV IMU?
For solid robot control, IMUs push data at 100Hz to 400Hz. High-speed autonomous rigs might need 1kHz to nail quick changes.
Does temperature affect IMU accuracy?
Yep, big temp swings can shift MEMS biases. Industrial IMUs pack temp sensors and compensation to stay spot-on from -40°C to +85°C.
