Extended Kalman Filter (EKF)
The gold standard for non-linear state estimation in mobile robotics. EKF lets AGVs blend noisy sensor data with motion models to nail down position and orientation in messy environments.
_hero.png)
Core Concepts
State Estimation
It crunches the robot's unobservable bits—like X, Y position and yaw (heading)—that no single sensor can measure directly.
Non-Linearity
Unlike the classic Kalman Filter, EKF tackles non-linear moves (curvy AGV paths) by locally linearizing with Taylor Series expansions.
Sensor Fusion
It fuses high-speed data (wheel odometry, IMU) with slower fixes (LiDAR, GPS) to keep drift in check.
Jacobian Matrix
The math trick to linearize non-linear functions around the current estimate, so everyday matrix algebra works.
Covariance
It tracks position uncertainty (how confident the robot is). EKF's covariance matrix tightens when sensors align and widens during drift.
Prediction & Correction
That classic two-step dance: motion from wheel speeds, then with sensor reality checks.

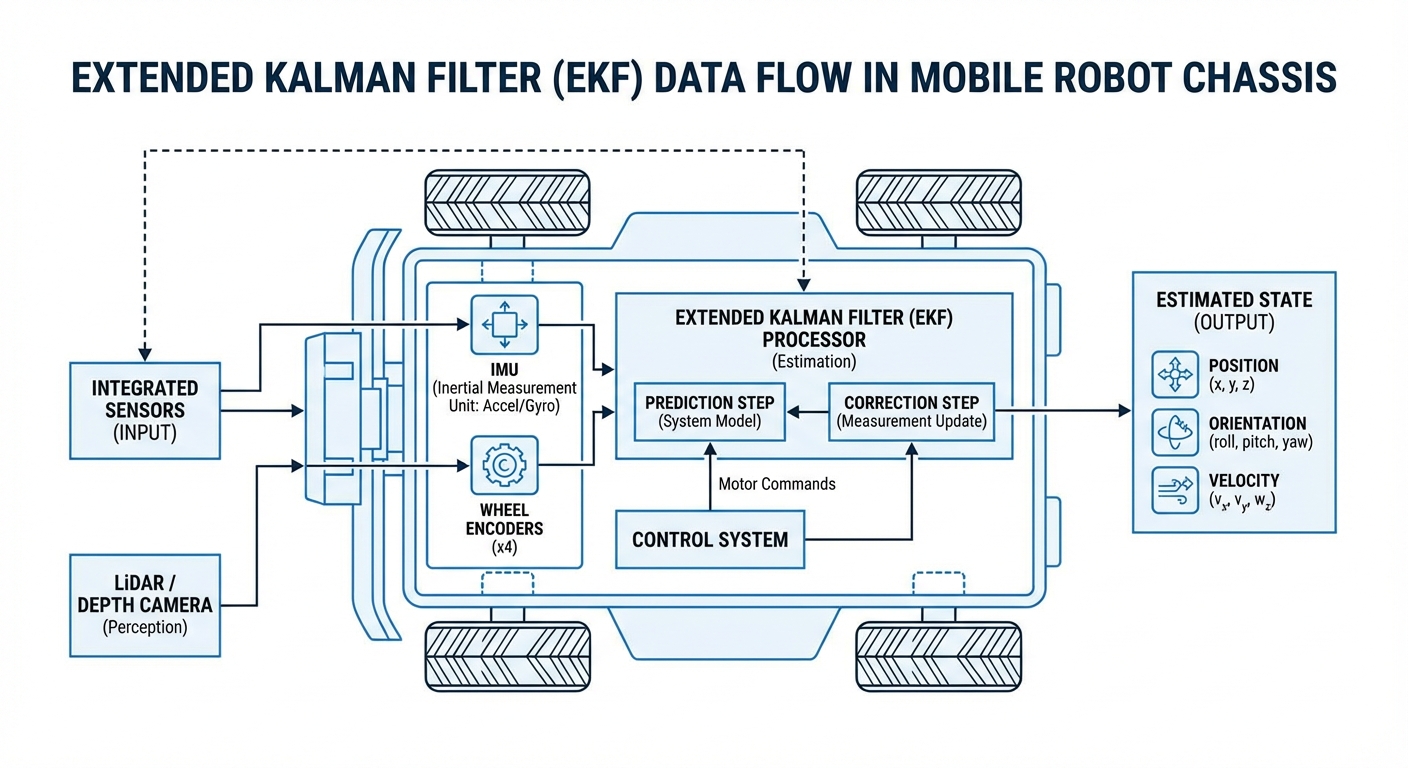

How It Works
The Extended Kalman Filter runs in an endless loop. In the , the AGV guesses its new spot from controls (like wheel velocity commands). But slippage or bumpy floors make it noisy.
Then, the kicks in with sensors like LiDAR or cameras. EKF pits the predicted sensor read against the real one.
The weighs prediction vs. measurement trust. Spot-on LiDAR? It yanks the state toward that data, sharpening the pose and shrinking uncertainty.
_diagram.png)
Real-World Applications
Warehouse AMRs
Perfect for differential-drive bots blending wheel encoders with 2D safety LiDARs for tight-aisle navigation.
Outdoor Agricultural Robots
Key for mixing GPS/RTK with IMUs on rough ground where wheels slip out.
Hospital Delivery Units
Lets robots hold steady in long, bland hallways using IMU guesses when landmarks are scarce.
Automated Forklifts
Delivers pinpoint orientation to line up forks with pallets, merging visual SLAM and steering encoders.
Frequently Asked Questions
What's the big difference between a Kalman Filter (KF) and an EKF?
Standard KF expects a linear world (straight paths, steady speeds). EKF handles curves and turns by computing the Jacobian to linearize right where the robot thinks it is.
Why are Jacobians necessary in EKF?
Gaussian uncertainties (the filter's secret sauce) stay Gaussian only under linear ops, so non-linears need taming. Jacobians give that first-order slope approximation, keeping things Gaussian-friendly.
What if your starting position guess is way off?
EKF hates bad initials. Too far off, and the Jacobian linearizes from the wrong spot, causing divergence—it's super confident but totally wrong. Particle Filters dodge this better.
What is the "Process Noise" (Q) matrix?
Q matrix is motion model uncertainty. Covers slip-ups like wheel slip, lumpy floors, or gusts. Dial it to say how much to doubt the robot's self-reported moves.
What is the "Measurement Noise" (R) matrix?
R matrix is sensor noise, pulled from datasheets (LiDAR ±2cm?). Crank R high, and it leans on predictions over sensors.
Is EKF computationally expensive?
EKF's efficient (O(k^2.4) to O(k^3)) and featherweight vs. Particle Filters. It's the go-to for AGV microcontrollers, cruising at 50-100Hz real-time.
How does EKF compare to Unscented Kalman Filter (UKF)?
UKF skips Jacobians with sigma points sampling the distribution. Better for wild non-linears, simpler (no derivs), but EKF wins on legacy code and lighter compute in straightforward cases.
Can EKF solve the "Kidnapped Robot" problem?
Nope. EKF's local only—if your AGV gets kidnapped to another room, it won't snap to reality; it'll drift-fail trying smooth corrections. Go Particle Filters for global reloc.
What sensors are typically fused in an AGV EKF?
Typical stack: wheel encoders (speed), IMU (gyro turns), plus absolutes like LiDAR (AMCL), GPS, or visual odom.
How do you tune EKF for a fresh robot?
Bag some sensor data first. Set R from static noise stats. Then drive: lagging path? Boost Q to trust sensors more. Jittery? Cut Q to favor the model.
