EtherCAT
The central nervous system of modern autonomous mobile robots. EtherCAT delivers the real-time, sub-millisecond synchronization and deterministic control required for precision navigation and safety in complex industrial environments.
Core Concepts
Processing on the Fly
Unlike standard Ethernet, EtherCAT frames get processed on the fly by slave devices as they pass through—no need to receive, decode, and copy process data at every node.
Distributed Clocks
Achieves precise synchronization (< 1 µs jitter) across all servo drives, essential for omnidirectional AGV movement and multi-axis manipulator arms.
Flexible Topology
Supports Line, Tree, Star, or Daisy-chain topologies without performance loss. Perfect for routing cables through the tight chassis constraints of mobile robots.
Safety over EtherCAT (FSoE)
Transmits safety-critical data on the same cable as standard control data. Enables integrated E-Stops and safety scanners without separate wiring harnesses.
Max Bandwidth Utility
Utilizes the full bandwidth of 100 Mbit/s (or greater) Ethernet in full-duplex mode. Efficient packing of data frames maximizes throughput for sensor-heavy robots.
Hardware Independence
The Master requires only a standard Ethernet port, reducing the cost of the onboard computer. Slaves use specialized but affordable ASIC chips to handle high-speed data.

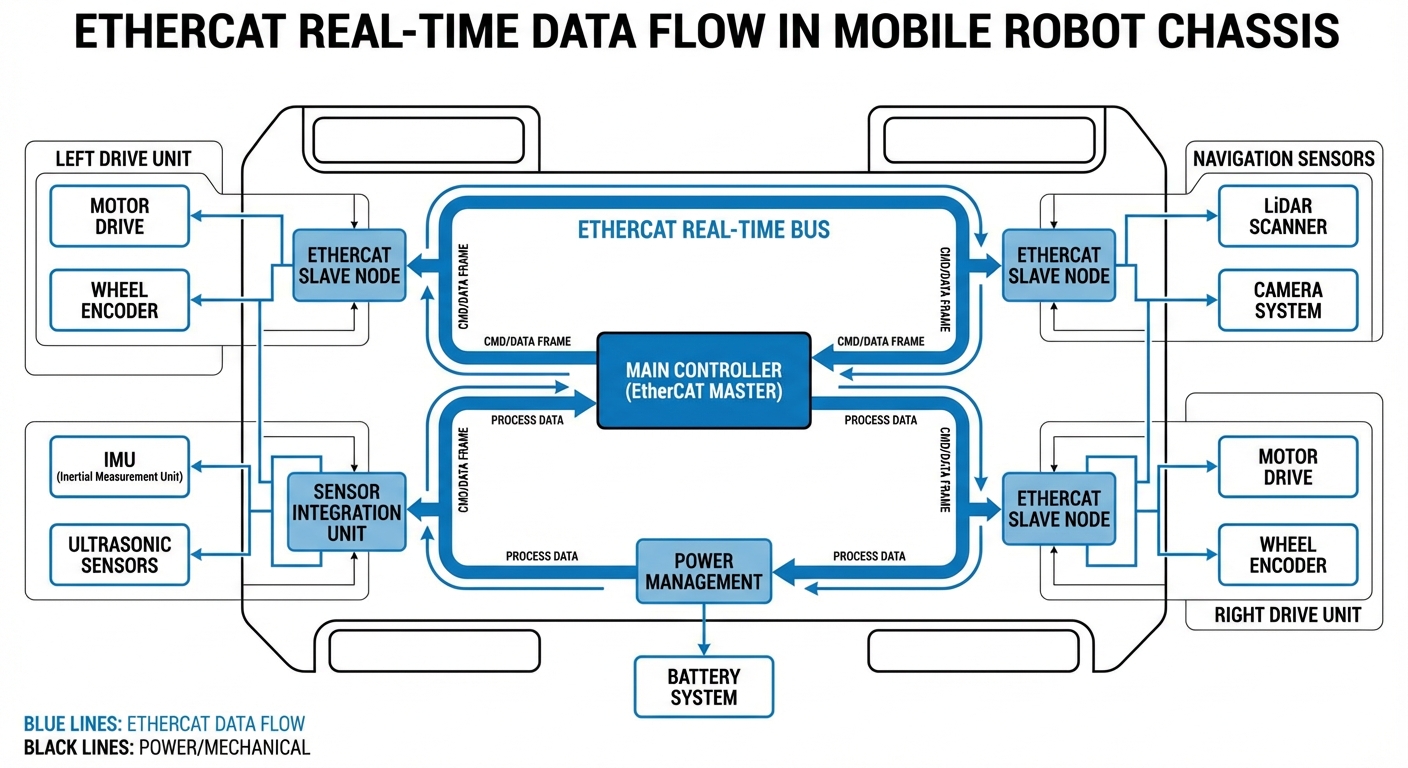

How It Works
In a standard Ethernet network, data packets are sent to specific devices, decoded, processed, and then a response is generated. This creates latency and jitter that is unacceptable for high-speed robotics.
EtherCAT shakes things up with its clever "telegram" train method. The master—that's the robot's main computer—fires off a single Ethernet frame. It then travels through every node in the network, like motor drivers, I/O slices, and sensors, one right after the other.
As the frame zips by, each device grabs the data meant for it and slips in its own output data . It's all handled by hardware, so there's practically zero processing delay—cycle times as quick as 100 µs for incredibly responsive AGV motion control.
Real-World Applications
Synchronized Mecanum Drive
AGVs with Mecanum or Omni-wheels need their four motors firing in perfect sync to pull off vector movement. EtherCAT's Distributed Clocks make sure torque commands hit all four wheels at the exact same microsecond, stopping any drift and delivering buttery-smooth diagonal moves.
LiDAR & Sensor Fusion
Today's AMRs crunch huge amounts of data from safety scanners and LiDARs. EtherCAT's blazing bandwidth lets raw sensor data fly to the main controller in a flash, powering real-time obstacle dodging and on-the-fly path adjustments.
Mobile Manipulation
For AGVs with robotic arms (think cobots), the mobile base and arm have to sync up seamlessly to grab stuff while on the move. EtherCAT ties the base and arm controllers into one smooth network, making the tricky kinematics of mobile manipulation way simpler.
Integrated Safety Logic
With Safety over EtherCAT (FSoE), you can tweak safety zones on the fly based on speed and load. Spot a human in the zone? The safety command shoots instantly through the Black Channel to the motor drives, triggering Safe Torque Off (STO) right away.
Frequently Asked Questions
What distinguishes EtherCAT from standard TCP/IP Ethernet?
Standard TCP/IP is unpredictable—packets can show up late thanks to collisions or routing hiccups. EtherCAT taps into Ethernet's physical layer but uses a special protocol where frames get processed on-the-fly by hardware, delivering rock-solid deterministic performance that's essential for motion control.
Why choose EtherCAT for AGVs over CAN bus (CANopen)?
CAN bus is tough, but it falls short on bandwidth and speed for today's sensor-packed AGVs. EtherCAT crushes it with way higher bandwidth (100 Mbps vs 1 Mbps), supports more nodes, and nails ultra-tight sync for fancy drive setups like holonomic bases.
Do I need special switches or routers for an EtherCAT network?
Nope. EtherCAT skips switches and routers entirely, dodging their latency and expense. Just daisy-chain your devices (line topology) or add branches with EtherCAT junctions—super simple and budget-friendly cabling.
What is the maximum cable length between nodes?
EtherCAT sticks to standard Ethernet 100BASE-TX specs, so you get up to 100 meters (328 feet) between nodes with CAT5e or better cables. Perfect for AGVs, even routing inside big mobile platforms.
How does Safety over EtherCAT (FSoE) work?
FSoE's "Black Channel" approach packs safety data into regular EtherCAT frames. The safety smarts live in the end devices (like safety PLCs and drives), which check data integrity—so you get safety-critical comms over standard cables, no special wiring needed.
Does the Master controller need a specialized EtherCAT chip?
No. The master (usually the AGV's onboard industrial PC) just needs a regular Ethernet port. Real-time magic comes from the master software stack (like TwinCAT or EtherLab) plus the custom hardware in the slaves.
Can I hook up standard Ethernet devices to an EtherCAT network?
Not directly—they don't speak EtherCAT. But "Ethernet over EtherCAT" (EoE) tunneling lets you shuttle standard TCP/IP traffic over the EtherCAT network to a device on a specific switch port terminal.
What if a cable snaps or a node craps out?
EtherCAT's got cable redundancy covered. Loop the last node back to a second master port (ring topology), and it can handle a single break. The master spots it and reroutes traffic instantly, keeping your AGV rolling until you fix it.
How does EtherCAT integrate with ROS/ROS2?
Check out open-source drivers like the SOEM library or ROS2 packages that run as EtherCAT masters. They turn EtherCAT bus data into ROS topics, so your high-level navigation can seamlessly boss around the low-level hardware.
What's a typical cycle time for an AGV?
For a standard AGV with 4-8 axes and some I/O modules, 1ms (1000 Hz) cycles are par for the course and super easy to hit. Optimized setups can dip to 250 µs or even 100 µs, but 1ms usually nails mobile robot needs.
Is hot-swapping of modules supported?
Yes, EtherCAT has Hot Connect groups. You can plug or unplug pre-configured network sections—like a tool on your robot—while everything's running, without messing up the rest of the bus.
How does Distributed Clock (DC) synchronization work?
Distributed Clocks measure delays across all nodes, syncing every slave's internal clock to the reference. That means all drives deliver torque at the exact same instant, no matter where they sit in the chain.
