Electronic Speed Controllers (ESC)
ESCs are the nervous system of modern autonomous fleets—they turn digital navigation commands into precise motor movements. They deliver smooth acceleration, great energy efficiency, and dependable payload handling for AGVs in busy environments.
_hero.png)
Core Concepts
PWM Signals
Pulse Width Modulation (PWM) is the language ESCs speak. The controller tweaks the width of electrical pulses to control motor speed and timing perfectly.
BEC (Battery Eliminator Circuit)
This lets the ESC step down voltage from the main battery to 5V, powering the microcontroller and receiver—no need for an extra battery.
Brushless Commutation
In modern robotics, ESCs electronically switch the phases of brushless motors (BLDC), ditching mechanical brushes for better efficiency and longer life.
Amperage Rating
The continuous current rating is make-or-break. Your ESC has to handle the motor's peak draw under load (especially AGV startups) without overheating or quitting.
Thermal Management
High-end ESCs use aluminum heatsinks and active cooling fans to dump the heat from MOSFET switching during intense robotic workloads.
Firmware Logic
Advanced firmware (like BLHeli or custom industrial versions) unlocks features such as regenerative braking, bidirectional rotation, and super-precise low-RPM control.
How It Works

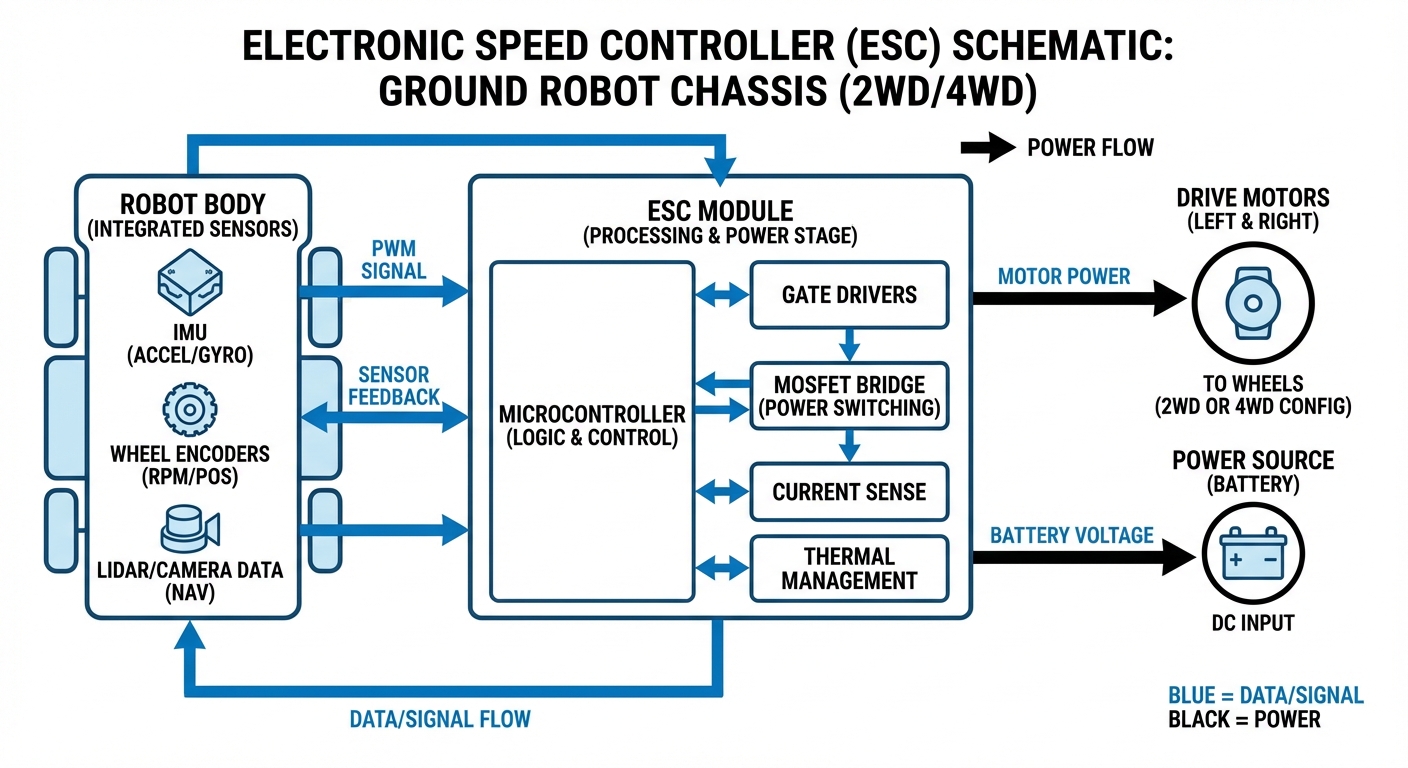

At heart, an ESC is an inverter converting DC from the robot's battery into the 3-phase AC brushless motors crave. It's the 'translator' bridging low-voltage signals from the flight controller or main computer to the motors' high-power demands.
The ESC deploys a bank of MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) as ultra-fast switches. Opening and closing them thousands of times per second generates a rotating magnetic field in the motor stator.
For buttery-smooth rotation, the ESC tracks the rotor's exact position—via Back-EMF sensing (sensorless) or Hall Effect sensors on the motor. This enables the high-torque starts industrial AGVs demand.
_diagram.png)
Real-World Applications
Warehouse Logistics (AMRs)
In autonomous mobile robots, ESCs dish out the torque to hoist heavy pallets and the finesse to dodge collisions in tight aisles. They handle abrupt stops and starts to keep payloads safe.
Precision Medical Carts
Hospital delivery robots demand whisper-quiet, silky-smooth ESC performance. Sine-wave drive ESCs shine here, slashing motor noise and vibration for a peaceful setting.
Outdoor Surveillance Rovers
Security robots tackling rough terrain need ESCs with high 'burst' ratings. They manage current surges from obstacles or inclines while preserving battery life.
Automated Forklifts
High-voltage industrial ESCs tackle the huge power needs of hydraulic pumps and drive wheels, tying into safety systems to instantly cut power if a perimeter breach happens.
Frequently Asked Questions
What is the difference between Brushed and Brushless ESCs?
Brushed ESCs are straightforward, driving DC motors via two wires (+ and -). Brushless ESCs (for BLDC) are more sophisticated, handling three phase wires and electronic commutation timing. Brushless versions deliver way higher efficiency, torque, and lifespan for robotics.
How do I calculate the Amp rating I need for my AGV?
Figure out your motor's max continuous current draw and its "burst" (peak) current. Go for an ESC with a continuous rating 20-30% higher than your motor's max to build in a safety margin and avoid overheating. For instance, if your motor pulls 30A, grab a 40A or 50A ESC.
What's an "Opto" ESC and when should you use one?
An Opto ESC uses an optoisolator to isolate the high-voltage motor circuit from your receiver signals, cutting down on electrical noise. The catch is it doesn't have a built-in BEC, so you'll need a separate 5V power source for your microcontroller or receiver.
Why do robotics ESCs need "Sensored" operation?
Sensorless ESCs figure out rotor position from Back-EMF, but that only works great when the motor's spinning fast. For AGVs needing big torque at zero RPM or super slow speeds—like docking—you'll want "Sensored" ESCs hooked up to Hall Effect sensors for smooth, cog-free movement.
Can I use a drone ESC for a ground rover?
Sure, technically, but we don't recommend it without tweaking the firmware. Drone ESCs are built for cooling from prop airflow (which rovers don't have) and usually don't do reverse out of the box. Rover ESCs come with better heatsinks and bidirectional control.
What is Regenerative Braking?
Regenerative braking lets the ESC turn your robot's kinetic energy back into electricity as it slows down. That feeds back into the battery, stretching out your run times and giving smoother, more controlled stops than just coasting.
How does input voltage affect ESC selection?
ESCs have a specific voltage range, often marked by LiPo cell count (like "2S-6S"). Push past the max voltage, and you'll fry the capacitors and MOSFETs right away. Always match your ESC to your battery pack.
What is "timing" in ESC settings?
Timing is about when the ESC fires the phases relative to the magnets. Low timing gives better efficiency and torque (perfect for robotics), while high timing boosts top RPM but runs hotter. Low-to-medium works best for most AGVs.
Why is my ESC beeping continuously?
Beeping codes are the ESC's way of diagnosing issues. Constant beeping usually means no valid throttle signal from the controller, throttle wasn't at zero on startup (safety check), or voltage is out of range.
What happens if an ESC overheats?
Most modern ESCs have thermal protection (Thermal Cut-Off). Hit the temp limit (around 100°C), and it'll throttle power or shut down to protect itself. If it's always overheating, add better cooling or step up to a higher-rated ESC.
Do ESCs require calibration?
Yes. Throttle calibration tells the ESC your controller's min and max PWM signals. Skip it, and motors might not start right or hit full power.
