Dynamic Window Approach (DWA)
It’s a smart local path planning algorithm that lets Autonomous Guided Vehicles (AGVs) handle tricky environments safely. DWA figures out the best velocity commands on the fly, factoring in the robot’s movement limits and nearby obstacles.
_hero.png)
Core Concepts
Velocity Search Space
Instead of hunting in x-y space, DWA searches straight in velocity space (v, ω). That way, every path it picks is something the robot’s motors can actually pull off.
The "Dynamic Window"
The algorithm narrows it down to a “window” of velocities the AGV can hit in the next short timestep, respecting its max acceleration.
Admissible Velocities
Safety first! DWA weeds out any speeds that wouldn’t let the robot stop in time to avoid a crash, keeping things collision-free.
Objective Function
It scores velocities on three things: Target Heading (getting toward the goal), Clearance (staying clear of obstacles), and Velocity (going as fast as possible).
Real-Time Response
Since it’s local and super efficient, DWA runs at high speeds like 10-20Hz, so the robot can react instantly to surprises in the environment.
Trajectory Simulation
The algorithm predicts a short trajectory for every possible (v, ω) combo to see where the robot would end up before making the move.

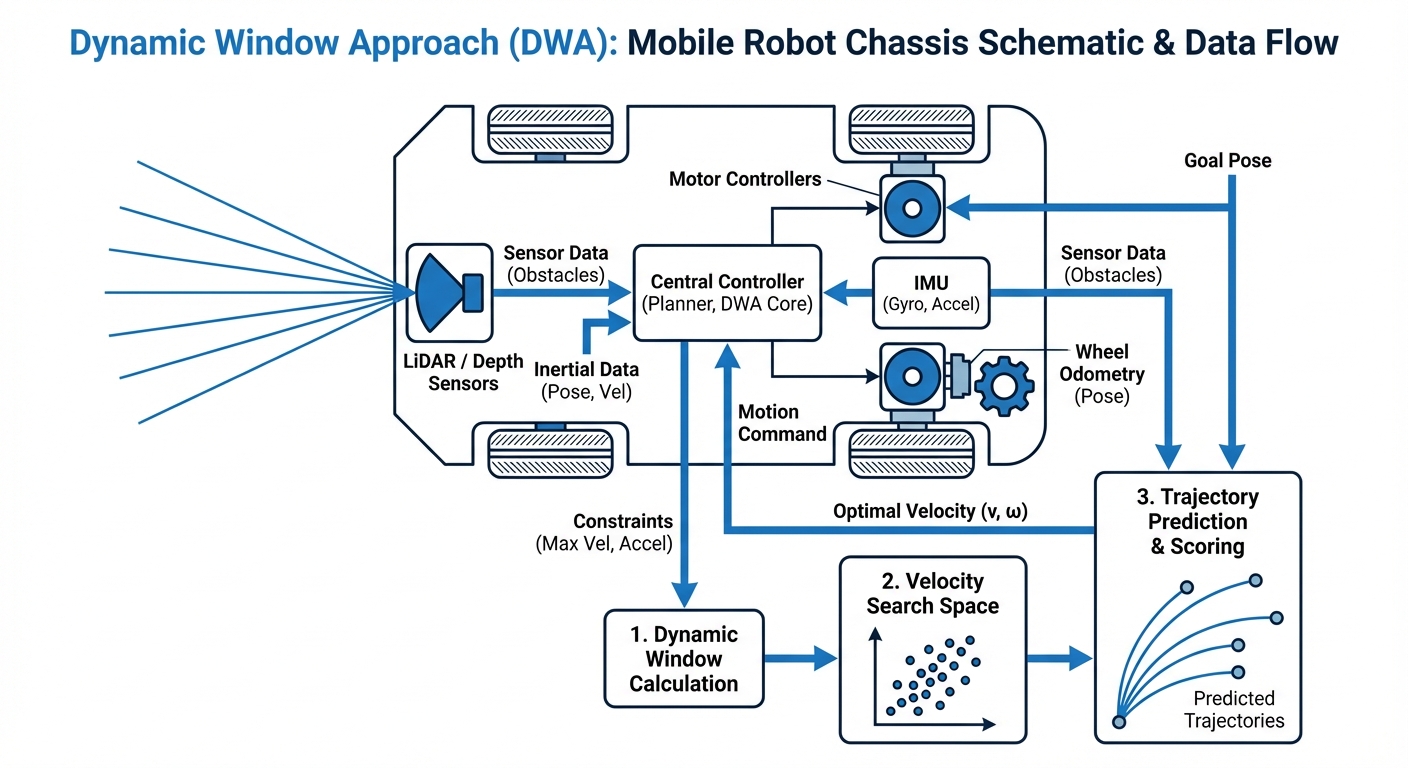

How It Works: The Cost Function
At its core, DWA is an optimization challenge. Every control cycle, it builds a “Dynamic Window” of all reachable velocities $(v, \omega)$ in the next timestep, capped by motor torque.
From that window, it simulates short trajectories. Each one gets scored with a weighted formula:
G(v,ω) = α · heading(v,ω) + β · dist(v,ω) + γ · vel(v,ω)
Heading Dist Vel
_diagram.png)
Real-World Applications
Automated Warehousing
AMRs with DWA zip through tight aisles and dodge surprises like fallen boxes or workers, keeping your throughput high and crash-free.
Hospital Logistics
Delivery bots use DWA to shuttle meds and linens down busy hospital halls, smoothly weaving around walking patients and rolling gurneys.
Manufacturing Floors
Heavy-duty AGVs hauling parts to assembly lines count on DWA to merge into traffic safely and slam on the brakes if a worker steps in front.
Commercial Cleaning
Floor scrubbers rely on DWA to follow their cleaning routes while nimbly avoiding furniture, shoppers, or pop-up displays in stores.
Frequently Asked Questions
What’s the difference between DWA and A* path planning?
A* (A-Star) is your global planner for the best route from A to B on a fixed map. DWA is the local hero—it follows the A* path but handles real-time dodging and robot physics to guide it precisely.
Does DWA work with non-holonomic robots (like differential drive)?
Yep, DWA is built for non-holonomic robots. It respects the no-sideways-movement rule by focusing on (linear velocity, angular velocity) instead of x/y directions.
How does DWA handle dynamic (moving) obstacles?
DWA sees moving obstacles as frozen pics each cycle. With recalcs at 10-20Hz, it stays ahead by always picking safe velocities—though it doesn’t predict paths outright.
What is the "Local Minima" problem in DWA?
As a greedy algo (chasing the best immediate score), DWA can trap itself in U-shapes or dead ends. That’s when recovery moves or a global replan kick in to bust out.
How computationally expensive is DWA?
DWA is lightweight and tough compared to heavy hitters like MPC or TEB. Simple sampling and scoring make it perfect for low-power chips on compact AGVs.
What sensors are required for DWA?
DWA needs a 2D LiDAR or depth camera (as LaserScan) for obstacles, plus odometry from wheel encoders or IMU to track speed and position.
How do I tune DWA for my robot?
Tuning means tweaking weights for Heading, Distance, and Velocity. Hitting stuff? Crank Distance. Too slow? Boost Velocity. Drifting? Up the Heading.
Can DWA handle robots with high inertia?
Yes, as long as your accel limits match the real robot. Set them too high, and DWA might demand moves it can’t safely do.
Is DWA standard in ROS/ROS2?
Yes, `dwa_local_planner` is a go-to in the ROS Navigation Stack and Nav2—often the default for differential-drive bots.
How does DWA compare to TEB (Timed Elastic Band)?
DWA is simpler, tougher, and easier on the CPU, but can feel a bit jerky. TEB gives silkier, optimal paths and loves car-like steering, but guzzles more processing power.
What happens if the goal is inside an obstacle’s inflation radius?
DWA might bail on the goal if the safety padding (inflation radius) is oversized—it’ll see it as risky and back off. Fine-tune those costmap params for solid docking.
Can DWA drive the robot backwards?
Most DWA setups handle reversing if you enable it. But it prefers going forward since front-facing sensors like LiDAR make backing up dicey without full 360° coverage.
