Convolutional Neural Networks (CNN)
The visual brainpower behind modern autonomous mobile robots. CNNs let AGVs read complex scenes, tag obstacles in real time, and navigate bustling warehouses with pixel-perfect moves.
_hero.png)
Core Concepts
Convolution Layers
The network's groundwork, where filters (kernels) sweep across images to catch basics like edges, curves, and textures—the essentials of robot vision.
Pooling Layers
Shrinks the image size (down-sampling) to cut compute needs, so AGVs can handle video streams quicker without missing key patterns.
Activation Functions (ReLU)
Brings non-linearity into play, letting the robot learn intricate connections between visuals and nav commands, not just straight-line basics.
Feature Maps
The results from convolution layers. Deeper layers turn these into maps of complex items like forklifts, pallets, or workers.
Fully Connected Layers
The final showdown: high-level features get flattened and scored for probabilities—like "98% sure that's a pallet."
Inference
Deployment time: the trained CNN runs on the robot's edge hardware (think NVIDIA Jetson) for split-second choices from live camera feeds.
How It Works
A Convolutional Neural Network mirrors the human visual system. Forget rigid rules in old algorithms—CNNs learn to "see" by training on thousands of labeled images.

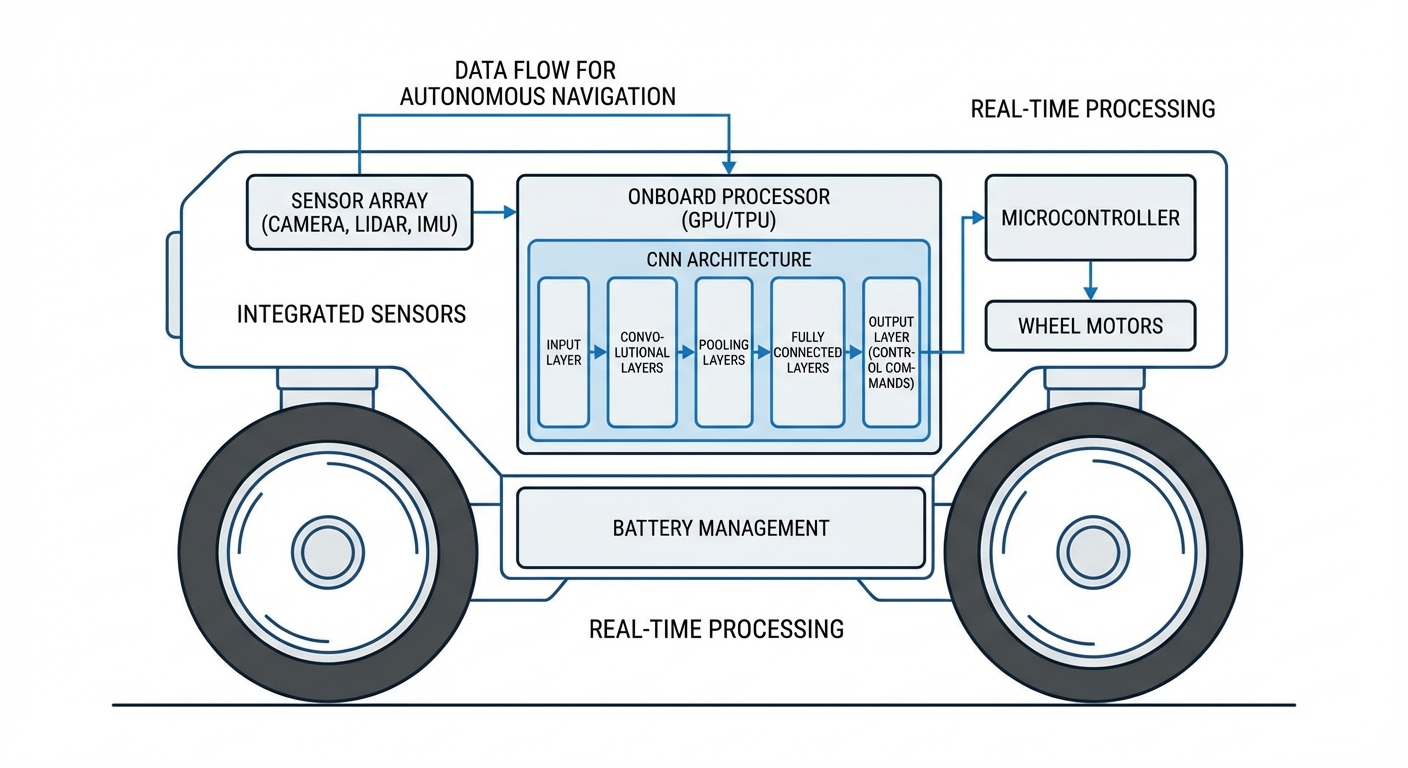

It kicks off with the Input Layer taking raw pixels from the AGV's cameras. Then come Hidden Layers—convolutions to extract features and pooling to compress the data.
In robotics, early layers pick out lines: vertical for walls, horizontal for shelves. Deeper ones blend them into shapes like a charging station or a human crossing an aisle.
The Output Layer delivers a classification or bounding box, telling the nav stack exactly what's ahead and where, for smarter path planning.
_diagram.png)
Real-World Applications
Dynamic Obstacle Classification
Telling a static box (safe to hug close) from a human worker (needs a wide safety margin). CNNs make safety protocols context-smart.
Visual SLAM & Localization
Using cameras to map spaces and pinpoint the robot's spot. CNNs spot unique landmarks (fiducials or natural ones) to fix drift in GPS-free warehouses.
Automated Inventory Inspection
Robots with CNNs scan shelves mid-nav, flagging low stock, misplaced goods, or damaged packs—turning AGVs into roving quality checks.
Docking & Precision Alignment
Precision terminal guidance for charging or handoffs. CNNs lock onto docking markers or charger shapes for millimeter-accurate alignment.
Frequently Asked Questions
What is the difference between a CNN and standard Computer Vision?
Standard computer vision uses hand-crafted features (like fixed color or shape thresholds). CNNs automatically learn the important ones from training data, making them far tougher against lighting shifts, angles, or object variations.
Do CNNs require special hardware on the AGV?
Yes, real-time CNN inference needs hardware acceleration. Most AGVs run edge AI like NVIDIA Jetson series or TPUs to crunch the matrix math fast without battering the battery.
How much data is needed to train a CNN for a warehouse robot?
From scratch, you'd need thousands of labeled images. But in robotics, it's all about Transfer Learning: fine-tune a pre-trained model (YOLO or ResNet) with just hundreds of your warehouse-specific shots, cutting data needs dramatically.
Can CNNs replace LiDAR for navigation?
Visual SLAM (vSLAM) with CNNs is emerging as a LiDAR rival, packing richer semantics (knowing an object is, not just that it exists). Still, killer industrial setups fuse LiDAR's depth precision with CNN object smarts for top safety.
How does a CNN handle low-light conditions in a factory?
CNNs depend on your camera's quality. Train them on low-light data to toughen up, but really dim conditions tank accuracy. Pair with active lights (headlamps) or IR cameras for those spots.
What is latency, and why is it critical for CNNs in robotics?
Latency's the delay from image capture through CNN processing to action. For fast-moving robots, high latency spells crashes. Optimize models (via quantization) for high FPS to guarantee real-time reactions.
What are the most common CNN architectures used in AGVs?
YOLO (You Only Look Once) and SSD (Single Shot Detector) are the go-to standards for object detection—they prioritize speed, which is essential for smooth navigation. MobileNet is a favorite backbone feature extractor because it's lightweight and built specifically for mobile and embedded devices.
How do you handle "false positives" in a robotics setup?
A false positive could make a robot hit the brakes for a shadow it mistakes for an obstacle. We counter this with confidence thresholds (e.g., only react if confidence > 70%), temporal consistency checks (like requiring the object in 3 straight frames), and sensor fusion from ultrasonics or LiDAR.
Does the robot learn on the fly while driving (online learning)?
Generally, no. Most industrial AGVs rely on "offline learning." The model gets trained on a server, then deployed to the robot, which just runs inference without updating weights during operation—for that predictable, certified safety.
What is the impact on battery life?
Running deep learning models is computationally intensive. But modern embedded GPUs are super efficient. A CNN setup draws more power than basic line-following sensors, yet the gains in route optimization and speed usually make up for the extra electrical draw.
How do 2D CNNs differ from 3D CNNs in robotics?
2D CNNs handle flat, standard images. 3D CNNs tackle volumetric data (like LiDAR point clouds or depth cams) or video clips (with time as the third dimension). They're ace for motion and 3D geometry but way hungrier for compute power.
What is Semantic Segmentation?
Unlike object detection that boxes objects, semantic segmentation labels every pixel (floor green, obstacles red, etc.). This gives AGVs a crystal-clear map of drivable space—vital for tight aisles.
