Brushless DC (BLDC) Motors
The go-to choice for cutting-edge AGV drive systems—killing it on efficiency, lifespan, and control over old-school brushed motors. See why BLDC is powering tomorrow's autonomous robots.
_motors_hero.png)
Core Concepts
Electronic Commutation
No brushes means no rubbing parts—BLDCs use electronic controllers to flip currents, ditching sparks and wear.
High Efficiency
BLDCs turn power into motion at 85-90% efficiency, stretching AGV battery life big time.
Maintenance Free
Skip brush swaps or commutator cleanups—the only movers are bearings, good for thousands of maintenance-free hours.
High Power Density
BLDCs pack more torque per pound than brushed, so you get sleeker bots without skimping on payload.
Precise Speed Control
Team them with Hall sensors or encoders for pinpoint RPM control, key for smooth AGV teamwork.
Quiet Operation
No brush friction means whisper-quiet—perfect for hospital or office bots.

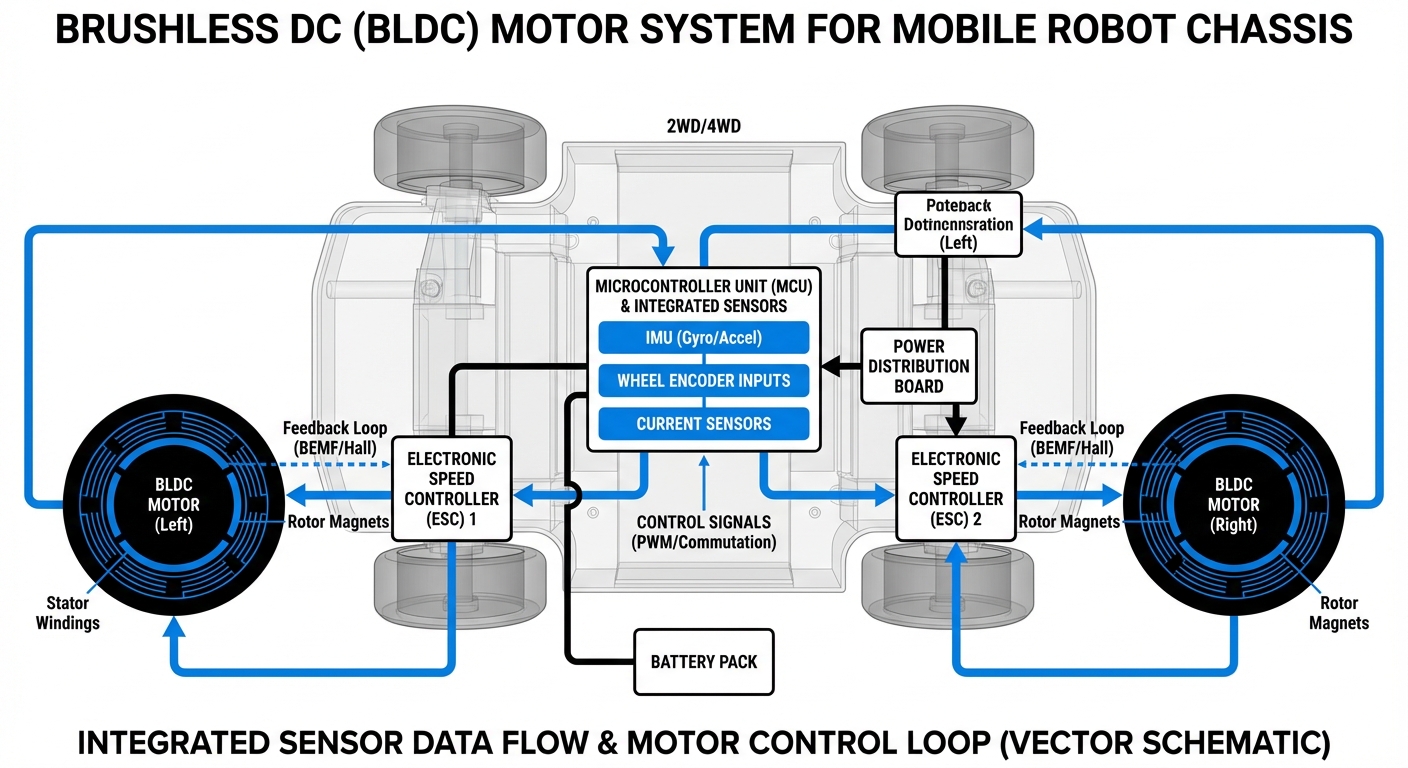

How It Works: Inside the Motor
At its core, a BLDC has fixed coils (stator) and spinning permanent magnets (rotor). No rotating coils here—instead, the ESC fires up stator coils in sequence.
That sequence spins a magnetic field, dragging the rotor magnets around. No brushes touching the rotor? Friction's gone.
For pinpoint AGV positioning, go 'sensored' BLDC with Hall sensors feeding rotor position to the controller. Smooth starts, big low-speed torque—ideal for tight warehouse maneuvers.
_motors_diagram.png)
Real-World Applications
Warehouse Logistics (AGVs)
Heavy-duty pallet movers count on high-torque BLDC motors to haul loads up to 1000kg. Their impressive efficiency lets these robots power through full 8-hour shifts on a single charge.
Medical Transport AMRs
In hospitals, silence really is golden. BLDC motors deliver near-silent propulsion for robots dropping off meds and linens, keeping patient disruptions to a minimum.
Last-Mile Delivery Bots
Outdoor delivery robots use weather-sealed BLDC motors to tackle uneven terrain and moisture, while stretching their range to conquer those tricky urban routes.
Automated Forklifts
Automated forklifts tap powerful BLDC motors for both traction and lifting hydraulics, giving precise control to stack pallets high without the jerky starts from hydraulic valves alone.
Frequently Asked Questions
What’s the key difference between sensored and sensorless BLDC motors for robots?
Sensored motors use Hall effect sensors to track rotor position, delivering high torque from zero RPM and buttery-smooth startups—essential for heavy AGVs kicking off from a standstill. Sensorless motors depend on back-EMF for position detection, but that only works once they’re spinning, so they can stutter at startup and aren’t ideal for precision robotics.
Do BLDC motors require a specific type of controller?
Yes, BLDC motors need an Electronic Speed Controller (ESC) or motor driver to run. You can’t just wire them straight to a DC battery like a brushed motor. The controller handles the precise timing of current to the coils to create smooth rotation.
Why are BLDC motors more expensive than brushed motors?
BLDC motors are trickier to manufacture, needing spot-on magnet placement and windings. They also require an external controller (ESC), bumping up the upfront system cost. But the total cost of ownership (TCO) usually comes out lower thanks to minimal maintenance and a super long lifespan.
Can BLDC motors handle regenerative braking in AGVs?
Yep, most modern BLDC controllers support regenerative braking. As the robot slows, the motor switches to generator mode, turning kinetic energy back into electricity to recharge the battery and boost efficiency even more.
What voltage is typical for industrial AGV BLDC motors?
Small to medium mobile robots usually run on 24V DC systems. Bigger, heavy-duty AGVs and forklifts go for 48V DC or higher to keep current in check while packing serious power.
How do I pick the right KV rating for my robot?
KV rating means RPM per volt. For heavy AGVs, go low KV for that torque punch. Higher KV suits speedy, low-torque setups like drones.
What maintenance is required for a BLDC motor?
BLDC motors are basically maintenance-free on the electrical side. The only wear spots are the bearings, which might need lube or swapping after 10,000+ hours, depending on load and conditions.
Are BLDC motors suitable for cleanroom environments?
Absolutely. No brushes means no wear, no carbon dust or particles. That’s why they’re the go-to for cleanrooms in semiconductors and pharma automation.
What happens if a BLDC motor overheats?
Too much heat can wreck the rotor’s permanent magnets (zapping torque for good) or melt coil insulation for shorts. Top AGV motors pack built-in thermistors to alert the controller and dial back power before trouble hits.
Do I need a gearbox with a BLDC motor?
In most AGV setups, yeah. BLDC motors often spin fast (like 3000 RPM) way beyond wheel needs. Pair them with a planetary or worm gearbox to slash speed and amp up torque for heavy loads.
How does IP rating affect BLDC motor choice?
For warehouse robots, IP54 (dust-protected, splash-proof) usually does the trick. But outdoor delivery bots or washdown food processing spots demand IP65 or IP67 to block water and rust.
Can I swap BLDC motors into an old brushed AGV?
Sure, but you’ll need to overhaul the drive system: new motors, new ESCs, and probably tweak the master controller to talk to them. The battery can stay if voltages match.
