Battery Management Systems (BMS)
The smart 'brain' powering your mobile robot, keeping things safe, long-lasting, and peak-performing. In 24/7 high-demand AGV ops, a solid BMS is non-negotiable.
_hero.png)
Core Concepts
Cell Balancing
Makes sure every battery cell charges and discharges evenly, stopping weak ones from dragging down the whole pack's capacity.
State of Charge (SoC)
Gives you spot-on fuel gauge readings for the robot. Smart SoC math avoids surprise shutdowns right in the middle of your warehouse.
Thermal Management
Watches temps across the pack. If rapid charging heats things up, it dials back power to dodge thermal runaway.
Safety Protection
Your digital circuit breaker. Spots over-voltage, under-voltage, or shorts and cuts power instantly via MOSFETs or relays.
Communication (CAN)
The bridge between battery and robot brain. Sends key data so the robot knows when to head back for a charge.
State of Health (SoH)
Spots battery wear over time. This heads-up helps managers swap packs before trouble hits.

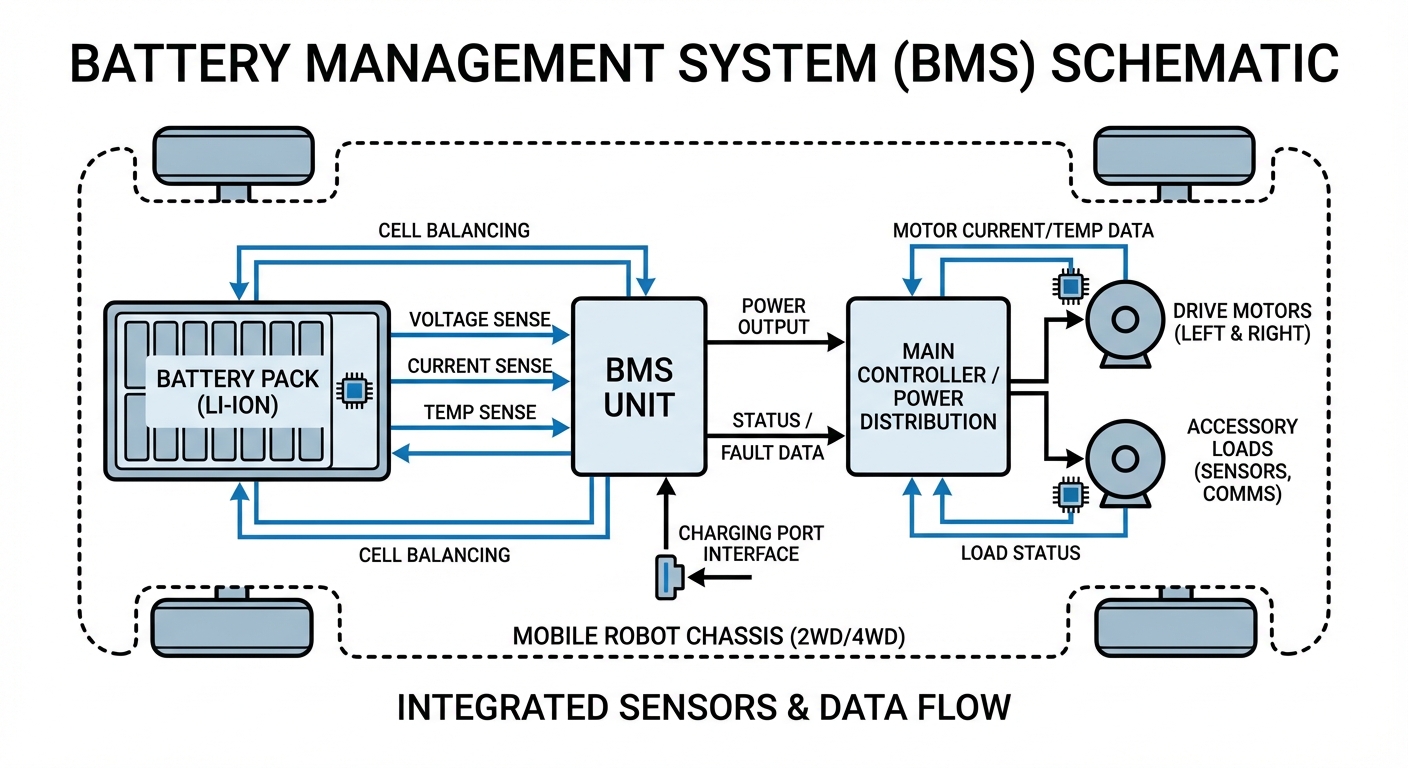

How It Works: The Architecture
At its core, the BMS sits between raw lithium cells and the AGV's power bus. Precision ADCs monitor every cell's voltage in the stack.
In robots, it's often paired with a 'Fuel Gauge' IC that tracks current via a shunt resistor. Data zips to the nav computer over CAN Bus or RS485.
Need big torque for a heavy lift? BMS checks if the battery can handle it without cooking. If not, it caps current—safety first.
_diagram.png)
Real-World Applications
Warehouse Logistics (AGVs)
In busy fulfillment centers, bots charge on the fly 24/7. BMS handles those high-current bursts during quick docks, avoiding lithium plating.
Medical Delivery Robots
Hospitals demand zero downtime. Here, BMS prioritizes backups and pinpoint SoC for robots hauling vital samples.
Heavy Payload AMRs
Hauling 1000kg+ pallets? BMS tackles high-voltage setups (48V-96V) and massive startup surges from motors.
Outdoor Security Bots
Outdoor bots in wild weather? These BMS units nail thermal control—heating pads in winter for charging, cooling fans in summer.
Frequently Asked Questions
What's the difference between Passive and Active Balancing in a BMS?
Passive balancing bleeds extra juice from high cells as heat via resistors—cheap and simple, but slow. Active shuttles it to low cells with caps or inductors—super efficient for big AGV packs, though pricier.
Why is CAN Bus communication preferred for robotics BMS?
CAN Bus rules for its noise-proof reliability in factory chaos. Lets BMS sync with motor drives and nav PC for real-time power tweaks based on battery health.
How does the BMS nail State of Charge (SoC) accuracy?
Voltage alone flops on lithium's flat curves (especially LiFePO4). Top BMS use Coulomb Counting (current over time) plus Kalman Filters for temp and age tweaks—1-2% accuracy.
What if the BMS craps out mid-run?
Good ones have fail-safe mode: logic dies, discharge switches open up, robot stops safely. Manual reset needed, but battery stays protected.
Can I grab an off-the-shelf BMS for my custom AGV?
Fine for prototypes, but generics miss robot-specific protocols like CANOpen or Modbus, plus the current punch for big motor loads.
How does a BMS handle regenerative braking in robots?
Braking sends motor current back to the battery. BMS watches that regen flow—if pack's full or current's wild, it tells motors to dump it to a braking resistor instead, saving the pack from over-voltage.
How long does a BMS typically last compared to the battery cells?
BMS electronics usually outlive the battery cells' chemical lifespan (5-10 years versus 3-5 years). That said, high-current switches like MOSFETs can wear out over time if you're constantly running the system near its heat limits.
Does the BMS control the battery charger?
Yep, especially in smart charging setups. The BMS plays the boss, telling the charger precisely what voltage and current to deliver. This supports those ideal CC-CV (Constant Current, Constant Voltage) profiles that really stretch battery life.
Why is "Sleep Mode" important for robotics BMS?
Robots often sit idle for weeks in storage. Even powered off, the BMS draws a tiny bit of juice. That's why 'deep sleep' mode drops it to micro-amps, keeping the battery from draining to dangerous lows.
What are the key safety certifications for BMS?
For industrial robotics, seek out certifications like IEC 62133 (secondary cells safety), IEC 61508 (Functional Safety/SIL levels), and UN38.3 (lithium battery transport). They confirm the BMS handles failures smoothly and safely.
How does temperature affect BMS performance?
You can't safely charge lithium batteries below freezing (0°C). A smart BMS spots low temps and either halts charging or fires up internal heaters to warm the cells first.
What is the difference between Low-Side and High-Side switching?
Low-side switching breaks the negative path—cheaper, but it can spark ground loop headaches in robots. High-side cuts the positive—trickier and pricier, but safer for industrial AGVs since it keeps the ground reference rock-solid.
